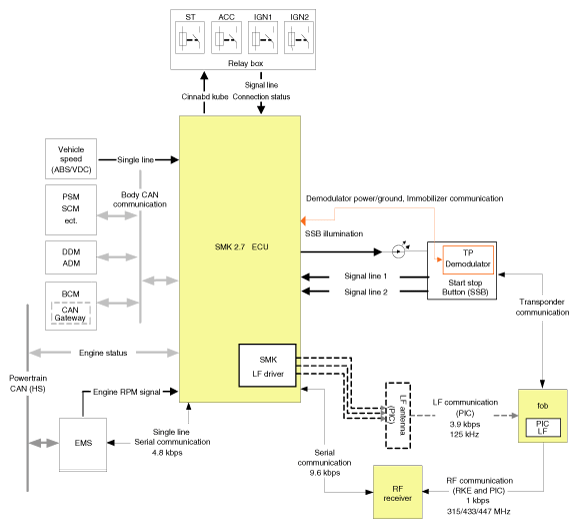

Home › Hyundai › 2016 › Santa Fe Sport Base, FWD › Repair and Diagnosis › Engine Mechanical › Starter › Button Engine Start System › Button Engine Start System › Schematic Diagrams › Circuit Diagram (1) › Notes
