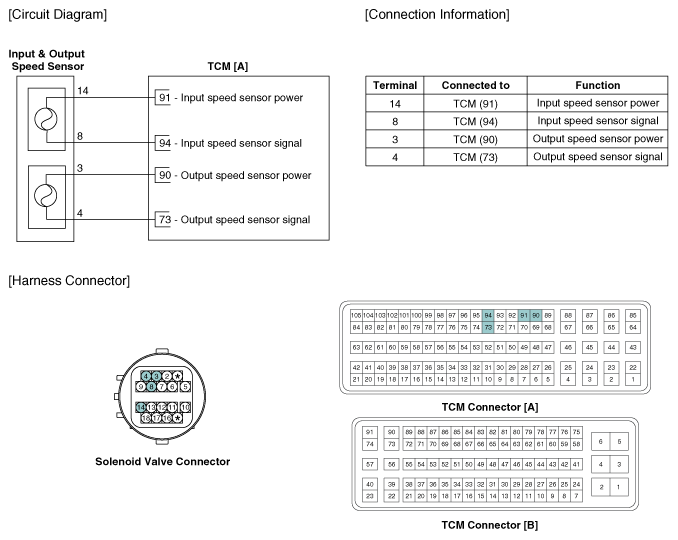

Home › Hyundai › 2016 › Santa Fe Sport Base, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Control System › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
