Components and Components Location: Components

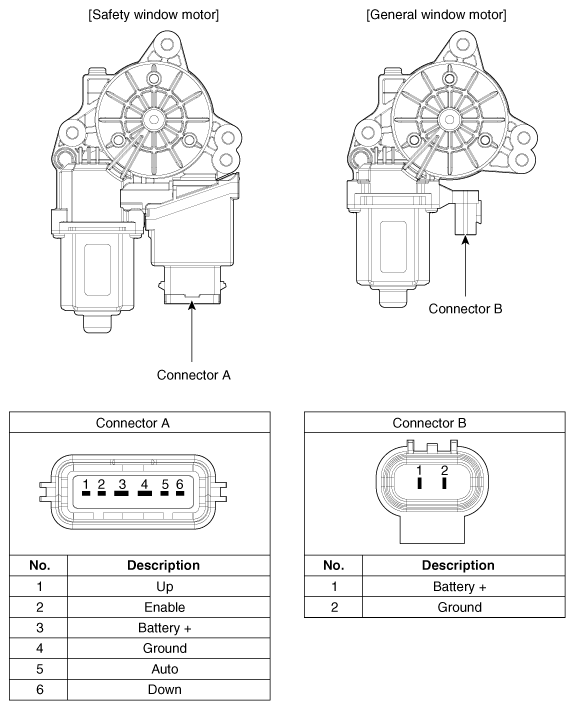

Fig 1: Power Window Motor Components
G10576910Courtesy of HYUNDAI MOTOR AMERICA
