Santa Fe XL Base
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Power Window Motor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

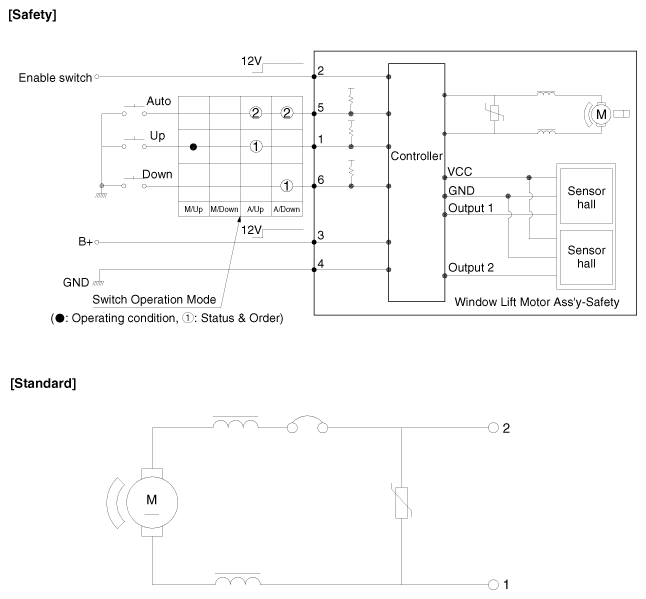

Fig 1: Power Window Motor Circuit Diagram - Safety
Courtesy of HYUNDAI MOTOR AMERICA
