Components and Components Location: Components

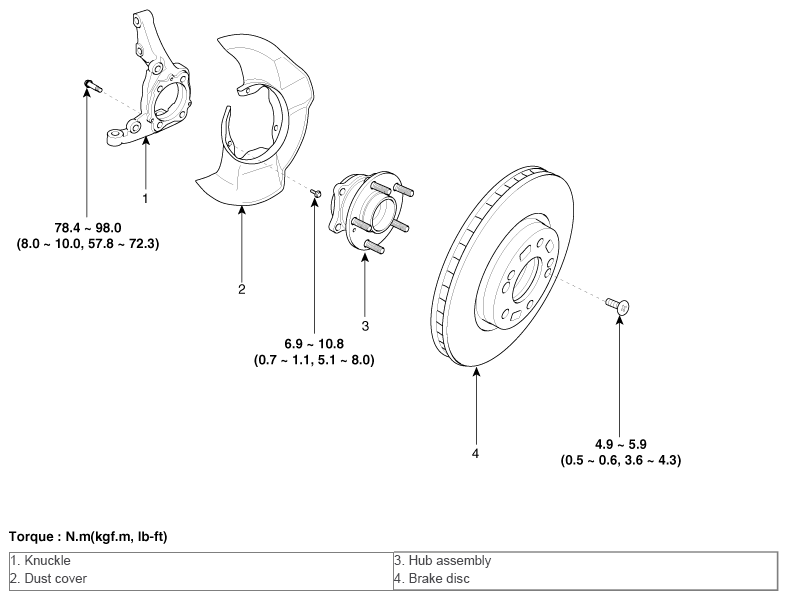

Fig 1: Front Hub, Knuckle And Tone Wheel Components With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
