Components and Components Location: Component

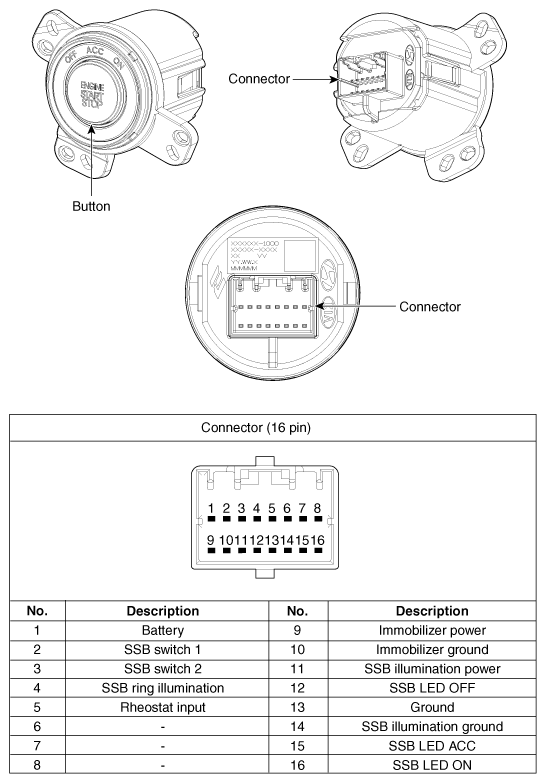

Fig 1: Start/Stop Button Connector Terminals
G10577257Courtesy of HYUNDAI MOTOR AMERICA
