Components And Components Location: Components

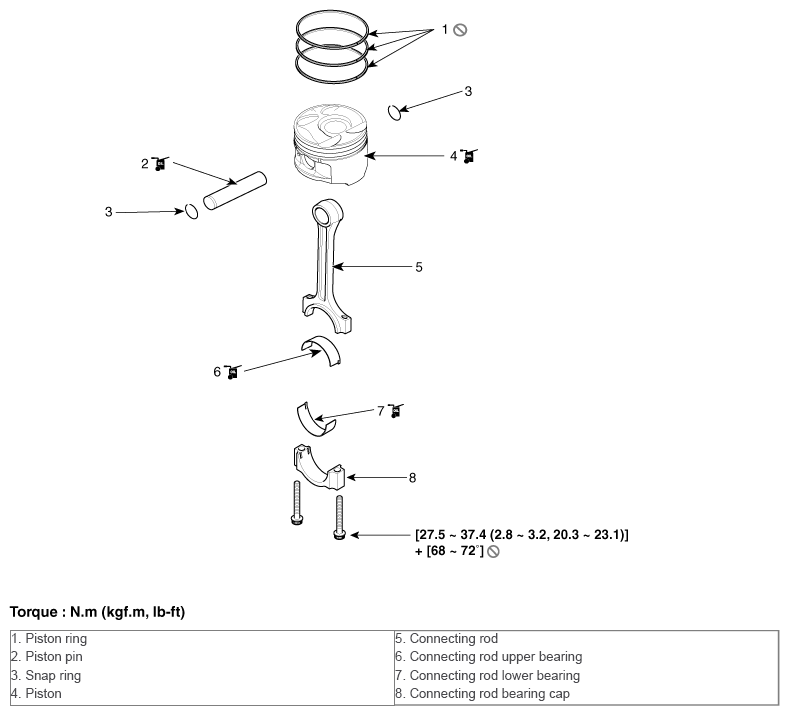

Fig 1: Piston And Connecting Rod Components With Torque Specifications
G10574517Courtesy of HYUNDAI MOTOR AMERICA
