Components and Components Location: Components

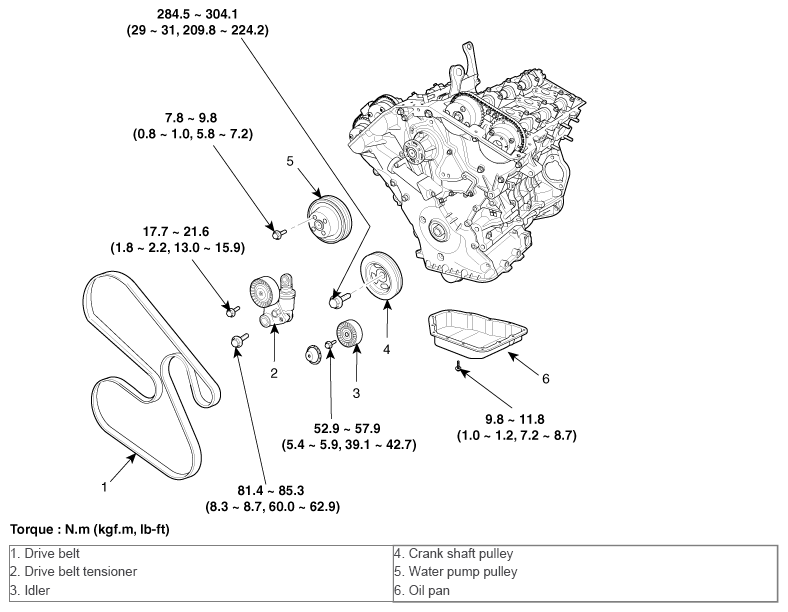

Fig 1: Timing System Components With Torque Specifications (1 Of 2)
G10574323Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Timing System Components With Torque Specifications (2 Of 2)
G10574324Courtesy of HYUNDAI MOTOR AMERICA
