Components and Components Location: Components

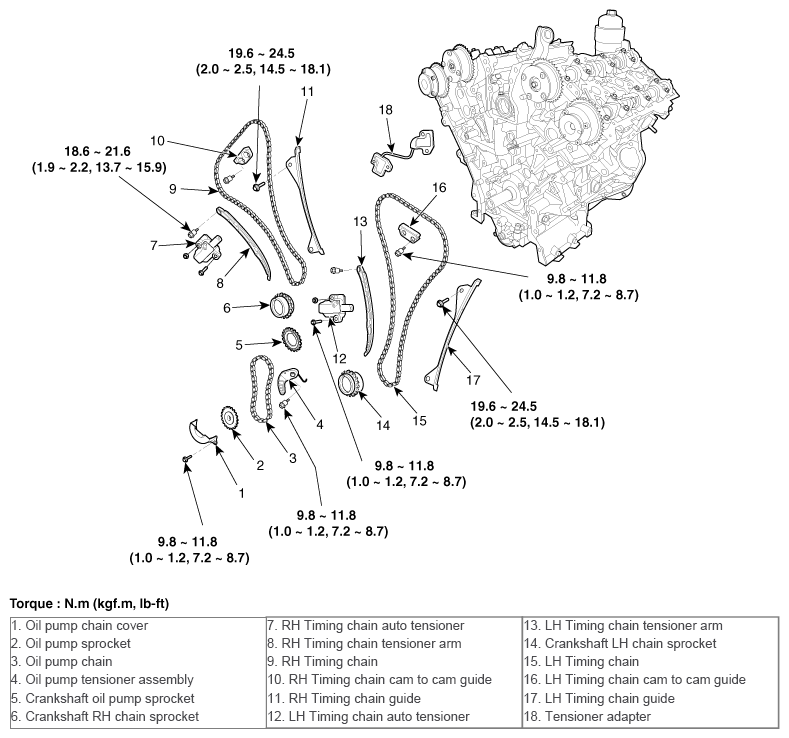

Fig 1: Timing Chain Components With Torque Specifications
G10574348Courtesy of HYUNDAI MOTOR AMERICA
