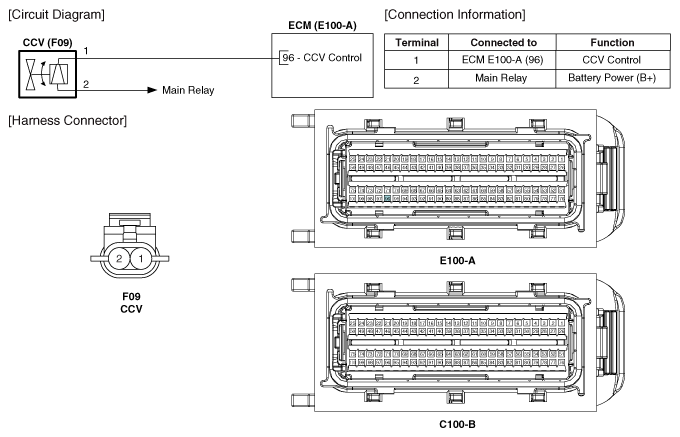

Home › Hyundai › 2016 › Santa Fe XL Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Canister Close Valve - CCV › Schematic Diagrams › Circuit Diagram
