Components Location

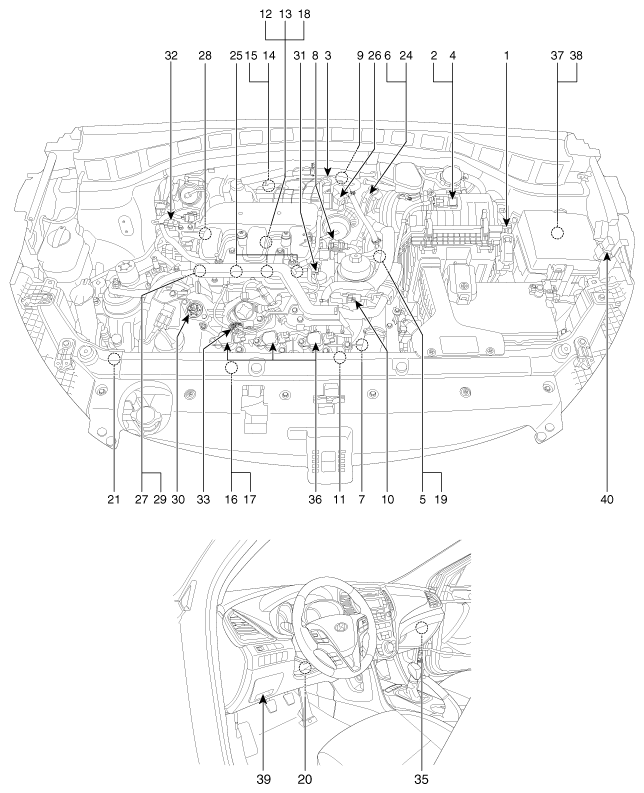

Fig 1: Engine Control And Fuel System Related Components (1 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

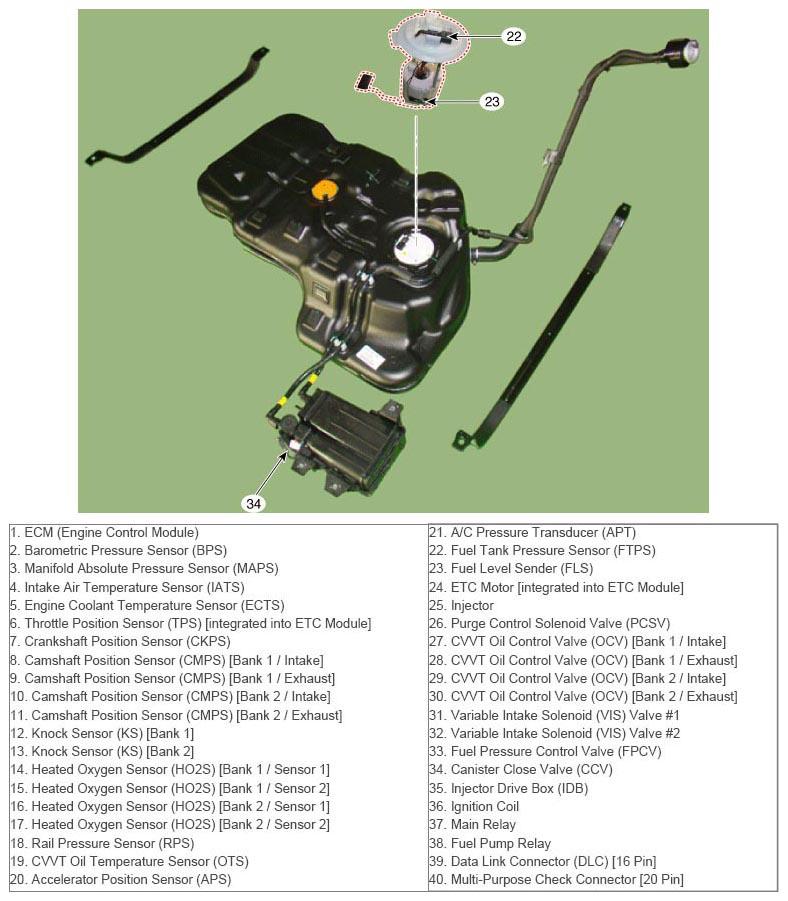

Fig 2: Engine Control And Fuel System Related Components (2 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

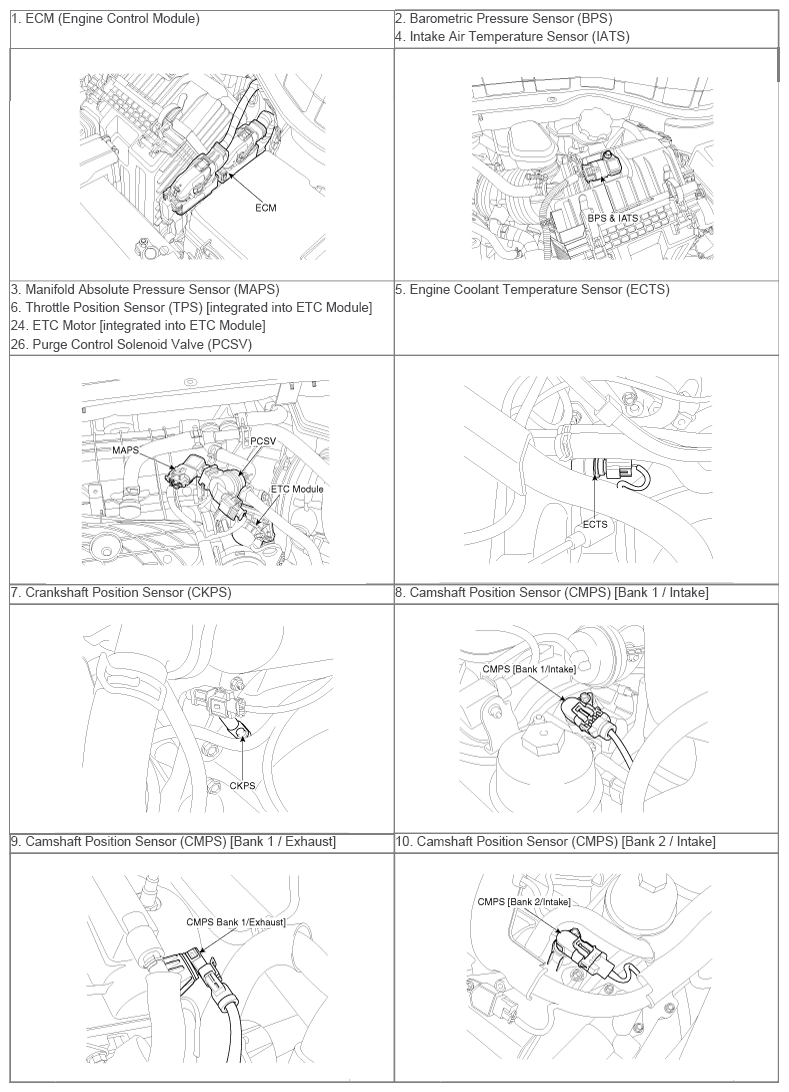

Fig 3: Engine Control And Fuel System Related Components (3 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

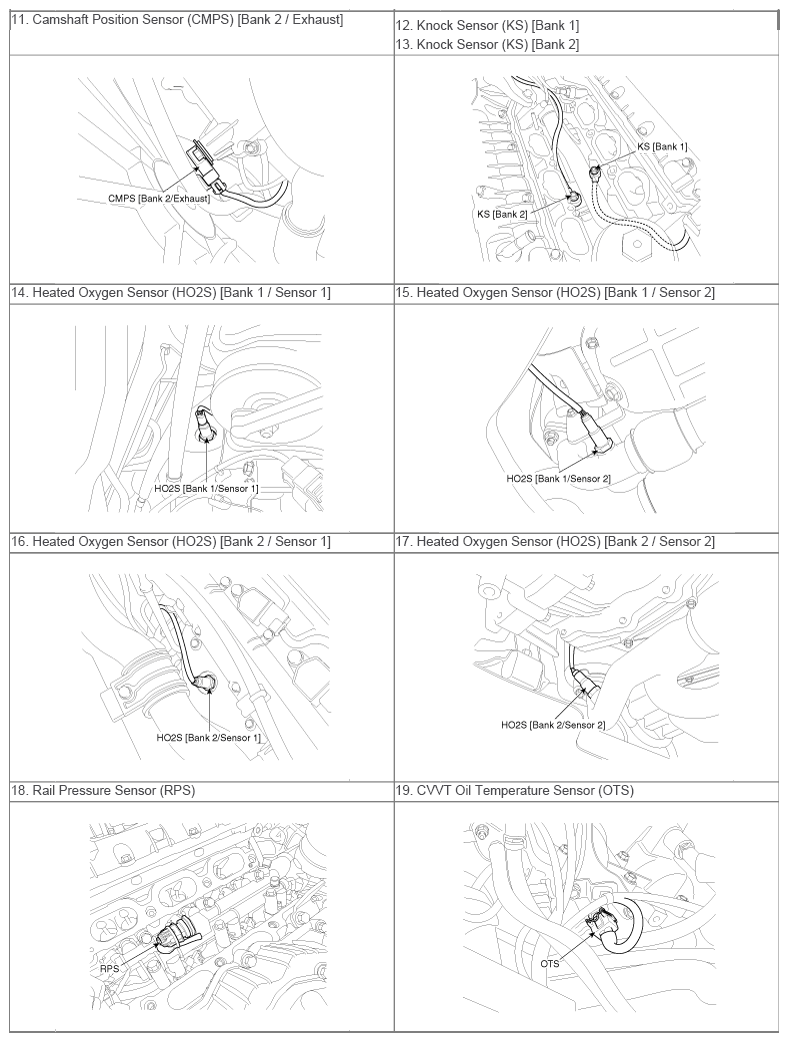

Fig 4: Engine Control And Fuel System Related Components (4 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

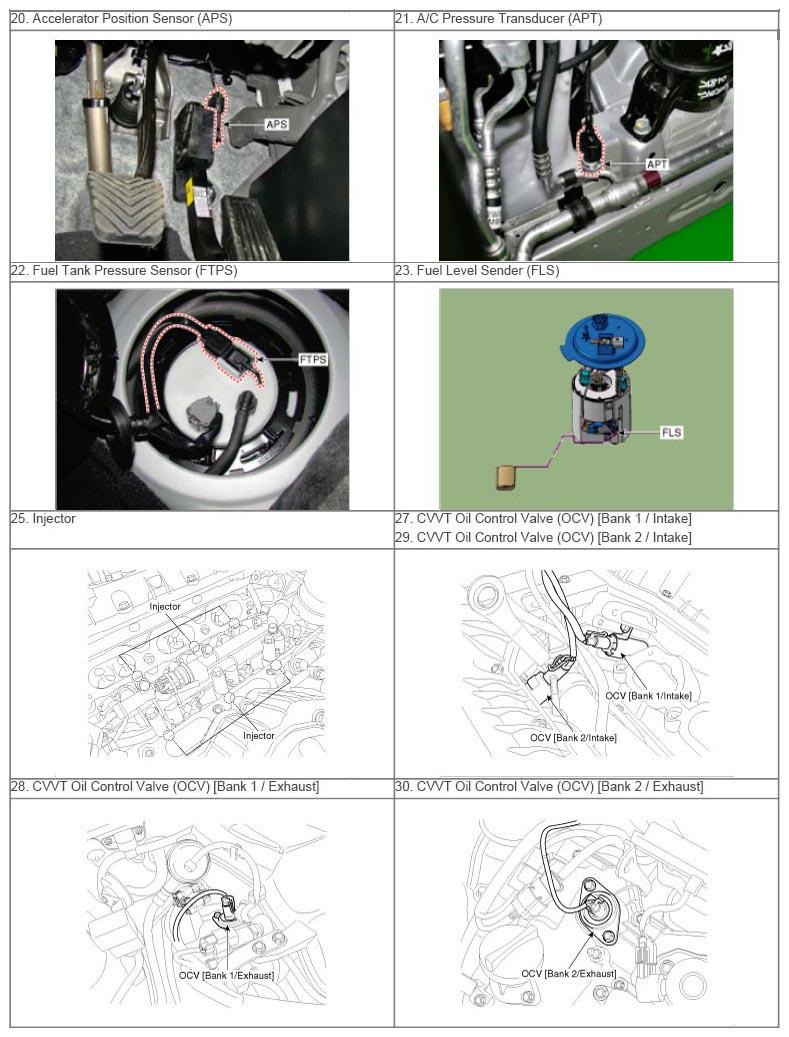

Fig 5: Engine Control And Fuel System Related Components (5 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

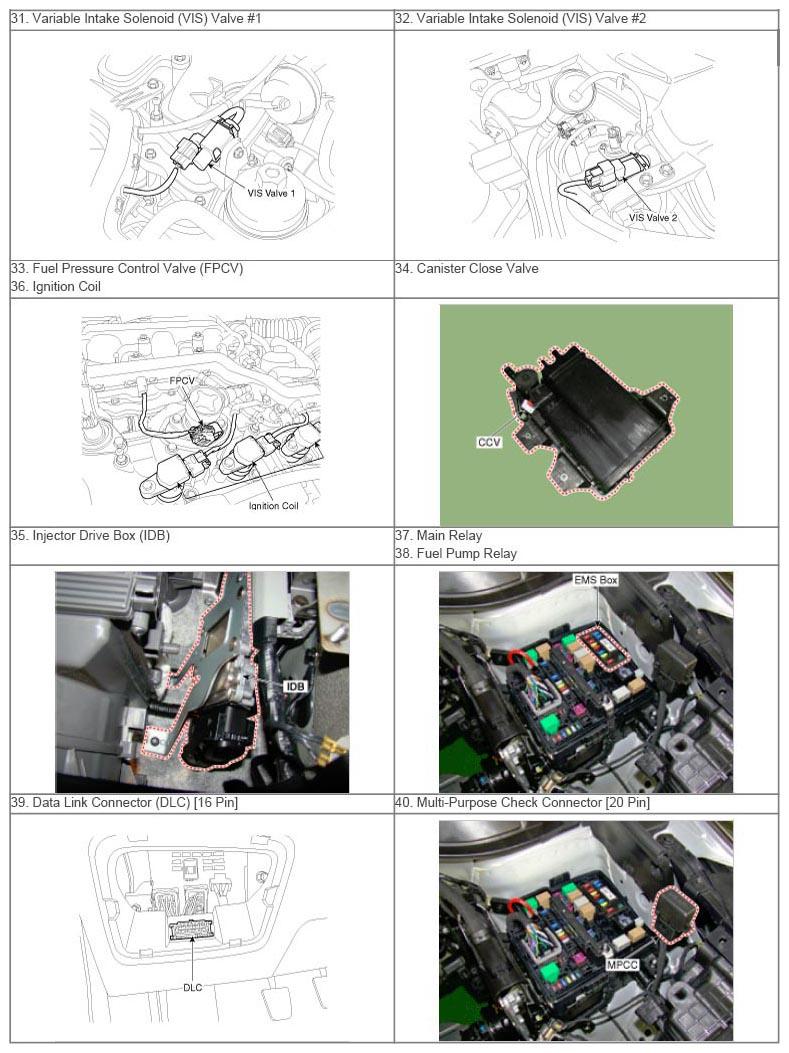

Fig 6: Engine Control And Fuel System Related Components (6 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA
