Signal Waveform

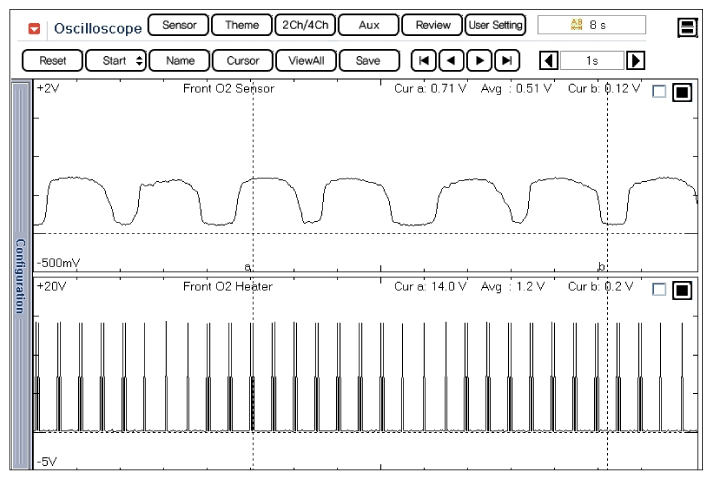

Fig 1: Heated Oxygen Sensor - HO2S - Signal Waveform (1 Of 2)
G10574897Courtesy of HYUNDAI MOTOR AMERICA

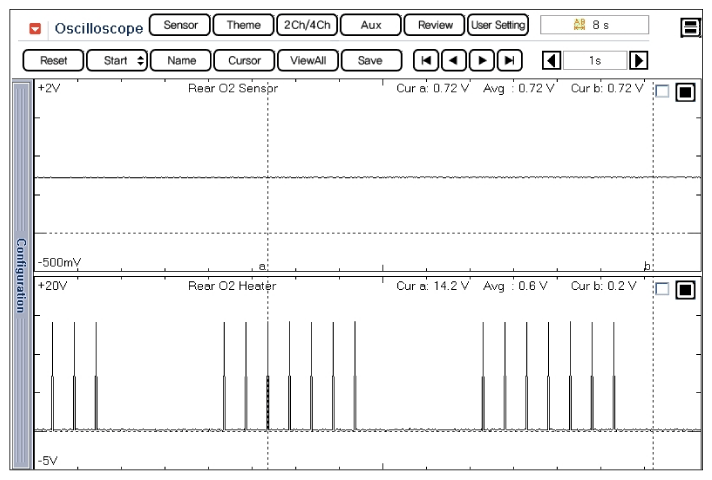

Fig 2: Heated Oxygen Sensor - HO2S - Signal Waveform (2 Of 2)
G10574898Courtesy of HYUNDAI MOTOR AMERICA
