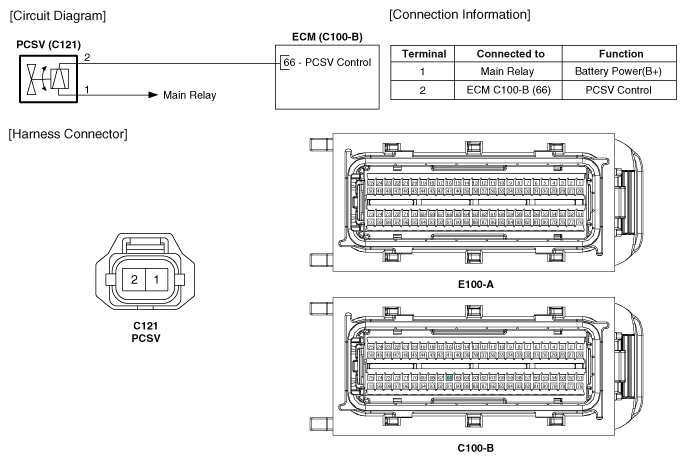

Home › Hyundai › 2016 › Santa Fe XL Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Purge Control Solenoid Valve - PCSV › Schematic Diagrams › Circuit Diagram
