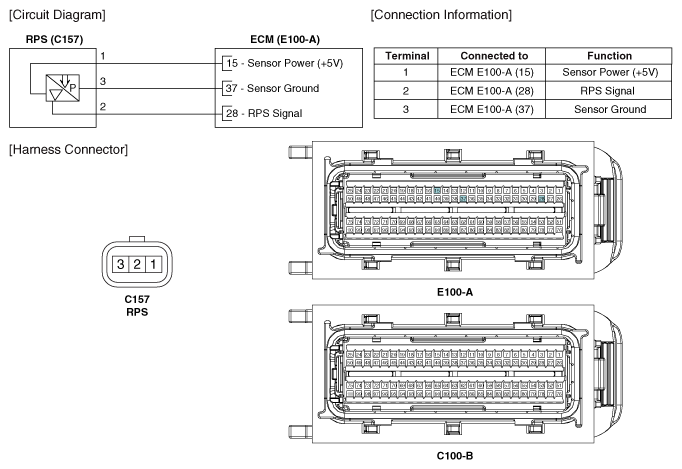

Home › Hyundai › 2016 › Santa Fe XL Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Rail Pressure Sensor - RPS › Schematic Diagrams › Circuit Diagram
