Home › Hyundai › 2016 › Santa Fe XL Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 3) › DTC P0198: Engine Oil Temperature Sensor High Input › Specification › Signal Waveform & Data

Signal Waveform & Data

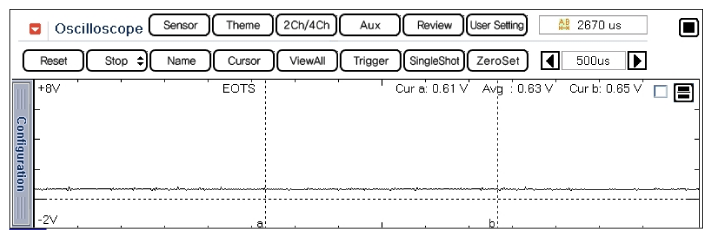

Fig 1: Screen Display - Normal Waveform Of EOTS At 76°C (168.4°F)
G10580289Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - Normal Data Of IATS & ECTS & EOTS At IG ON
G10580290Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Screen Display - Normal Data Of IATS & ECTS & EOTS Engine At Operating Temperature
G10580291Courtesy of HYUNDAI MOTOR AMERICA
