Signal Waveform & Data

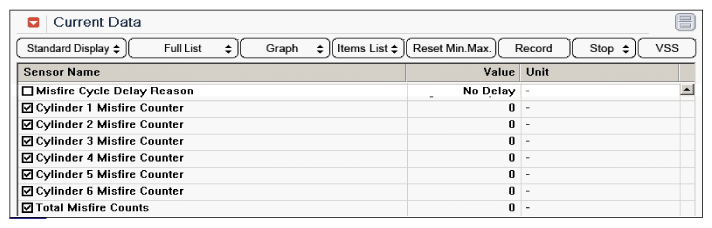

Fig 1: Screen Display - Normal Data Of Misfire Counter At Idle
G10580393Courtesy of HYUNDAI MOTOR AMERICA

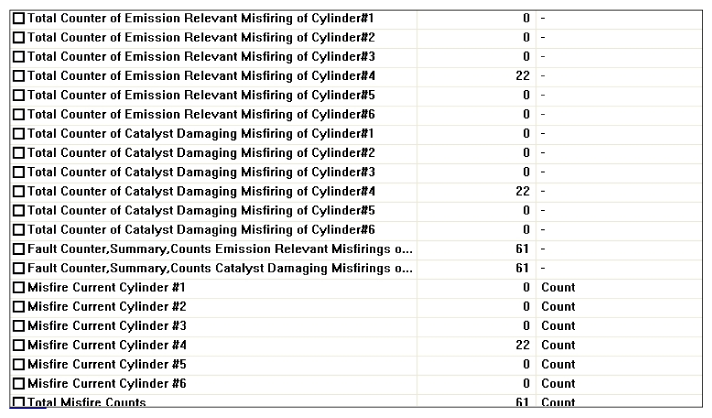

Fig 2: Screen Display - Abnormal Data Of Misfire Counter When Cylinder 4 Injector Opens
G10580394Courtesy of HYUNDAI MOTOR AMERICA
