Repair procedures: Removal

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)
NOTE:
- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Fig 1: Wheel And Tire
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Fig 2: Front Strut Assembly And Stabilizer Link
Courtesy of HYUNDAI MOTOR AMERICA
Remove the sprit pin and castle nut and then disconnect the tie-rod end (A) from the front knuckle.
Tightening torque:

23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 17.4 ~ 24.6 lb-ft)

Fig 3: Tie-Rod End, Sprit Pin And Castle Nut
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Fig 4: Lower Arm, Bolt And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)
NOTE:
- Keep the neutral-range to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Do not use the bolt again.
Fig 5: Universal Joint Assembly And Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Remove the roll rod stopper bolt (A).
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Fig 6: Roll Rod Stopper And Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the muffler rubber hanger (A).

Fig 7: Muffler Rubber Hanger
Courtesy of HYUNDAI MOTOR AMERICA

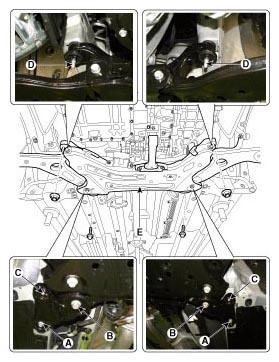

Loosen the bolts & nuts and then remove the sub frame.
Tightening torque

Bolts:

(A) 44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)

(B) 98.1 ~ 117.7 N.m (10.0 ~12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Nuts:

(C) 44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)

(D) 156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

Fig 8: Sub Frame Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA

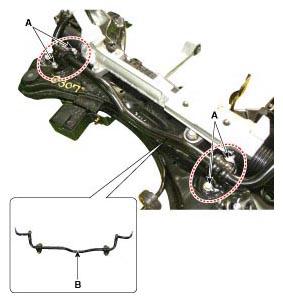

Loosen the bolt (A-4ea) and then remove the stabilizer bar (B) from the sub frame.
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Fig 9: Stabilizer Bar And Bolts
Courtesy of HYUNDAI MOTOR AMERICA

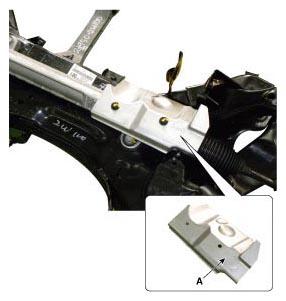

Loosen the bolt and then remove the protector (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 10: Protector
Courtesy of HYUNDAI MOTOR AMERICA

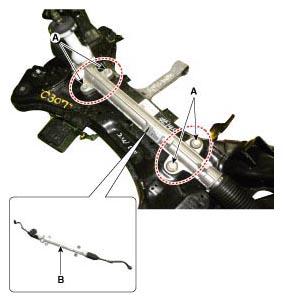

Remove the steering gearbox (B) from the cross member by loosening the mounting bolt (A-4ea).
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Fig 11: Steering Gearbox And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the nut (A-2ea) and then remove the sub frame damper (B).
Tightening torque:

39.2 ~ 49.0 N.m (4.0 ~ 5.0 kgf.m, 28.9 ~ 36.2 lb-ft)

Fig 12: Sub Frame Damper And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front lower arm.
(Refer to "FRONT LOWER ARM ")
Loosen the bolt (A-2ea) and then remove the roll rod stopper (B) from the sub frame (C).
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Fig 13: Roll Rod Stopper And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

Fig 14: Sub Frame
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
Check the front alignment.
(Refer to "FRONT ALIGNMENT ")
