Components and Components Location: Components

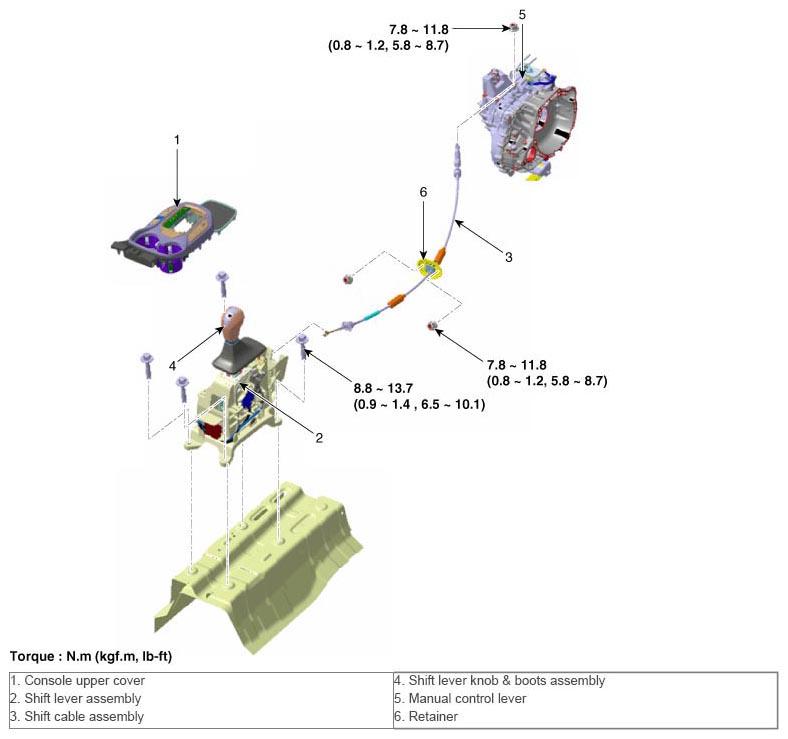

Fig 1: Shift Cable Components With Torque Specifications
G10575233Courtesy of HYUNDAI MOTOR AMERICA
