Components and Components Location: Components

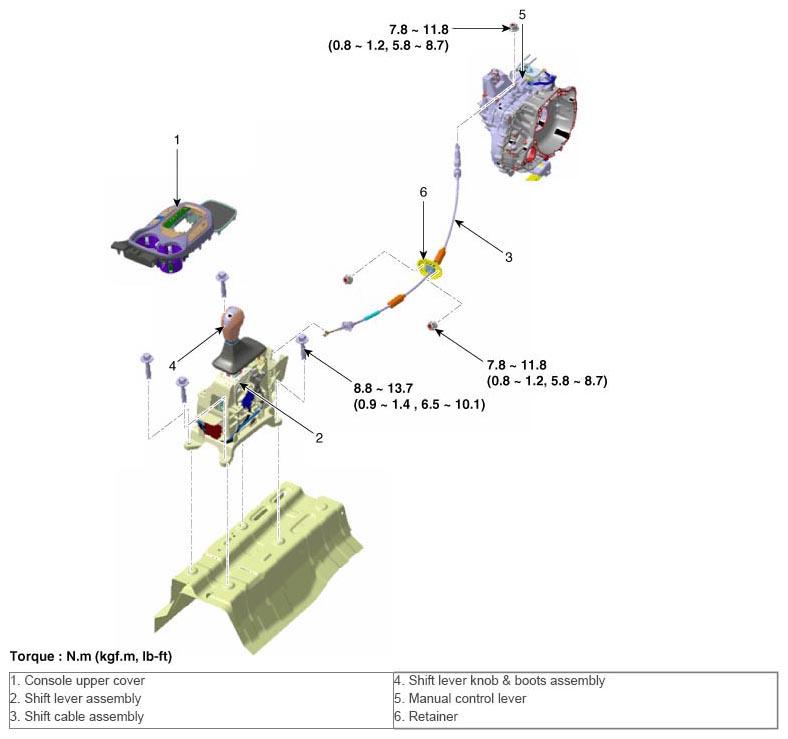

Fig 1: Shift Lever Components With Torque Specifications
G10575229Courtesy of HYUNDAI MOTOR AMERICA
