Components Location

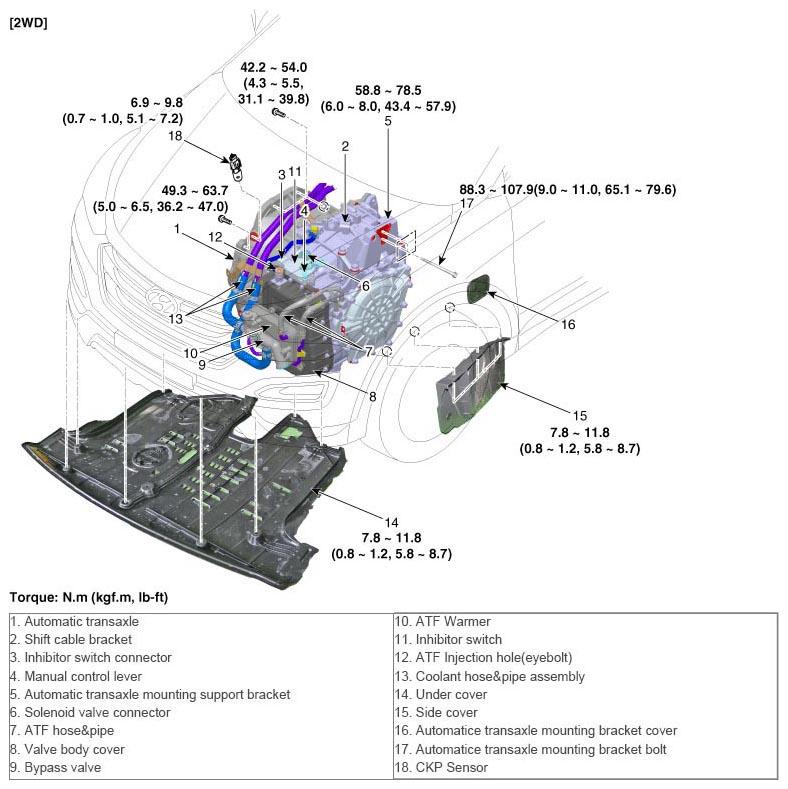

Fig 1: Automatic Transaxle System Components With Torque Specifications - 2WD
G10575048Courtesy of HYUNDAI MOTOR AMERICA

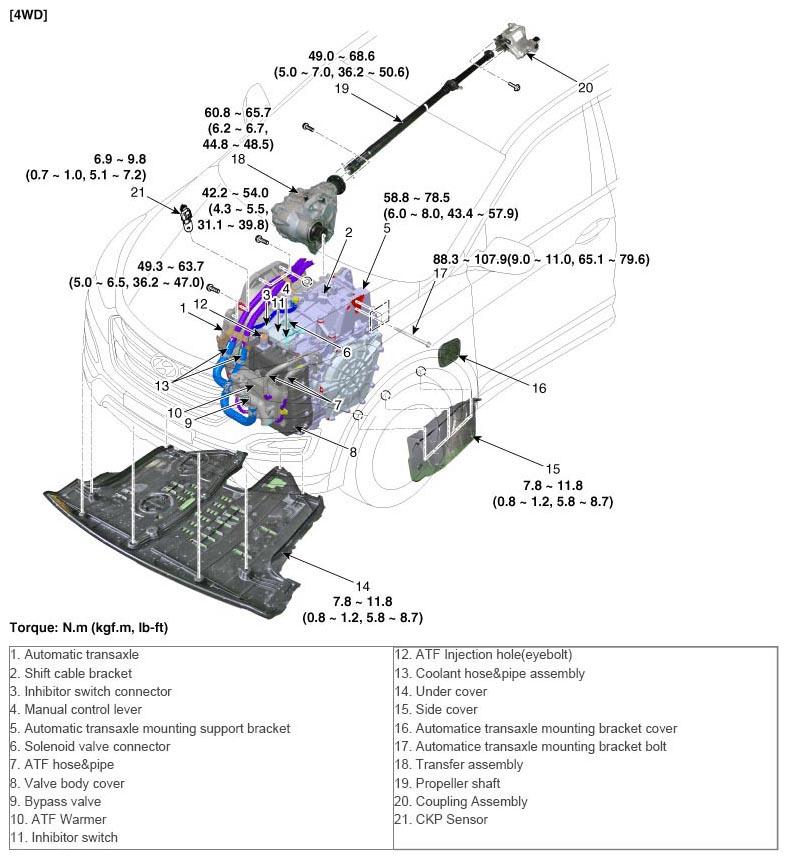

Fig 2: Automatic Transaxle System Components With Torque Specifications - 4WD
G10575049Courtesy of HYUNDAI MOTOR AMERICA
