Assist Power Window Switch

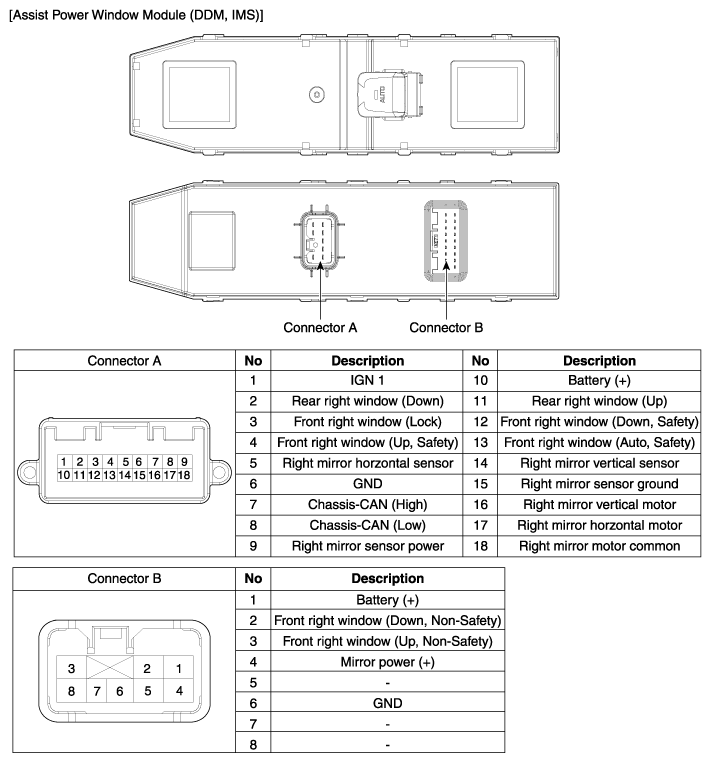

Fig 1: Identifying Assist Power Window Module (DMM, IMS) Connector (1 Of 2)
G10567849Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Identifying Assist Power Window Module (DMM, IMS) Connector (2 Of 2)
G10567850Courtesy of HYUNDAI MOTOR AMERICA
