Rear Power Window Switch
Rear Power Window Switch

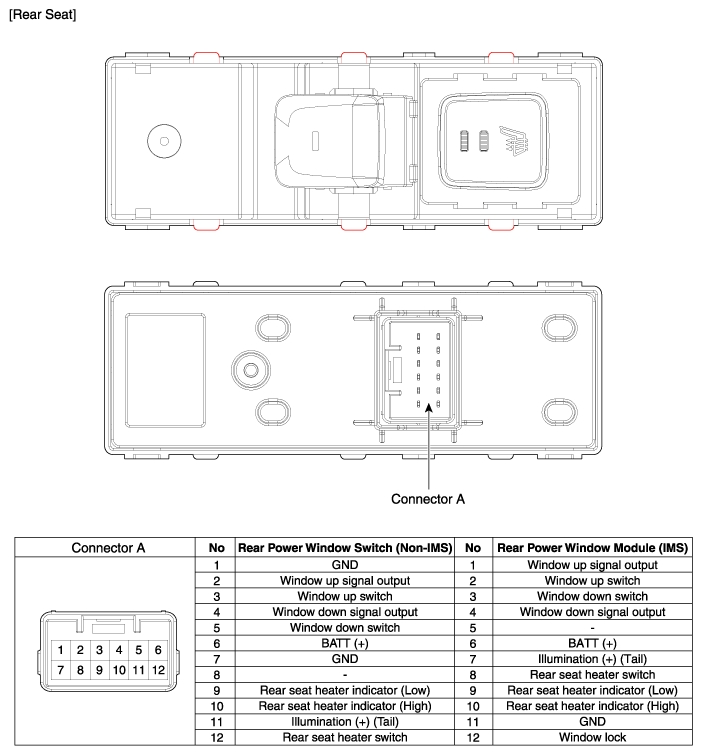

Fig 1: Identifying Rear Power Window Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
