Repair Procedures: Installation

Installation is the reverse of removal.
Tighten the HECU mounting bolts and nuts to the specified torque.
After installation, bleed the brake system.
(Refer to: Brake System - "ESP SYSTEM "Brake System Bleeding").
Connect the GDS to the data link connector located underneath the dash panel.
Select and operate according to the instructions on the GDS screen.

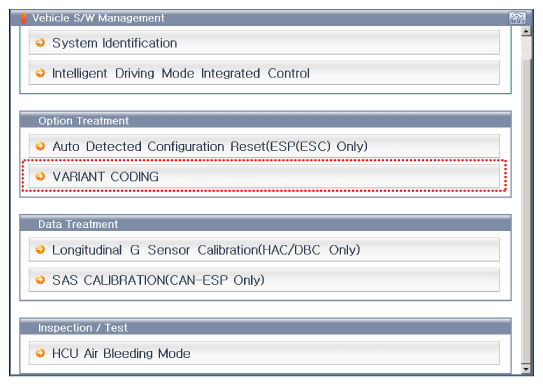

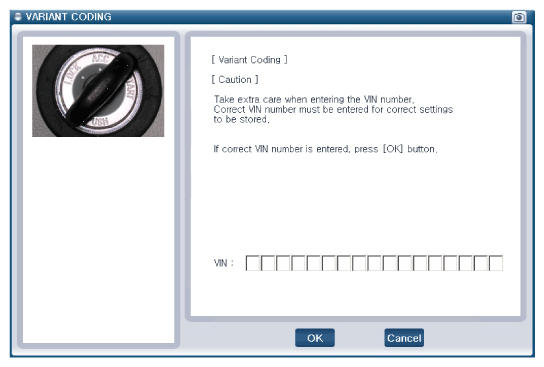

[VARIANT CODING]

Fig 1: Tightening HECU Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

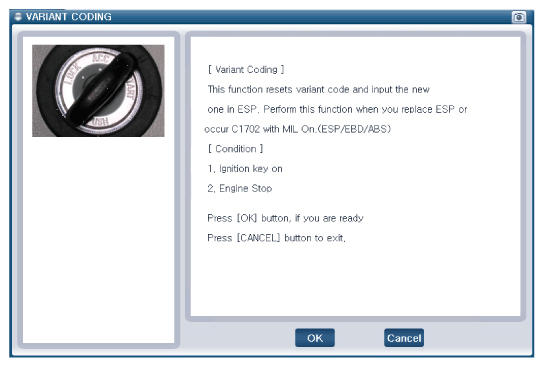

Fig 2: Screen Display - Variant Coding (1 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Screen Display - Variant Coding (2 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

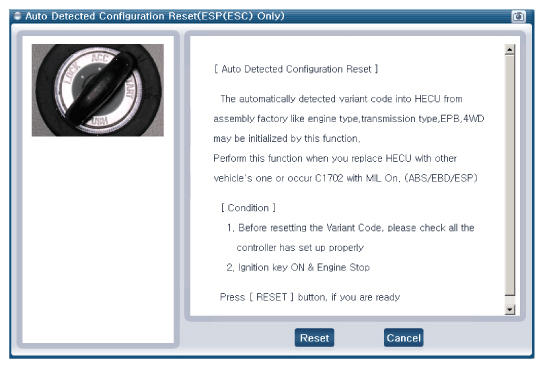

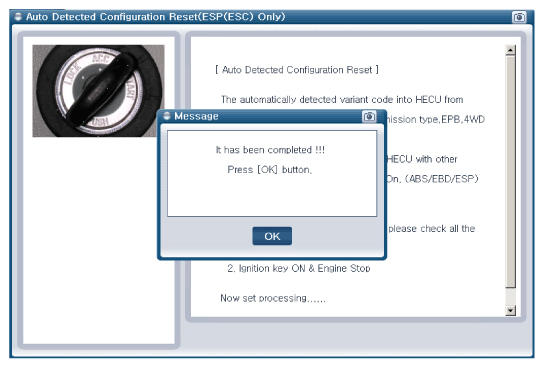

[Auto Detected Configuration Reset]

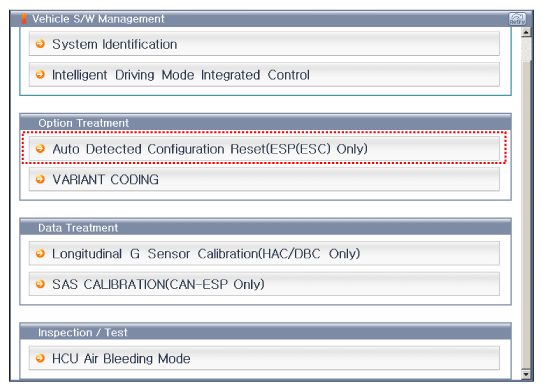

Fig 4: Screen Display - Variant Coding (3 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Screen Display - Variant Coding (4 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Screen Display - Variant Coding (5 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

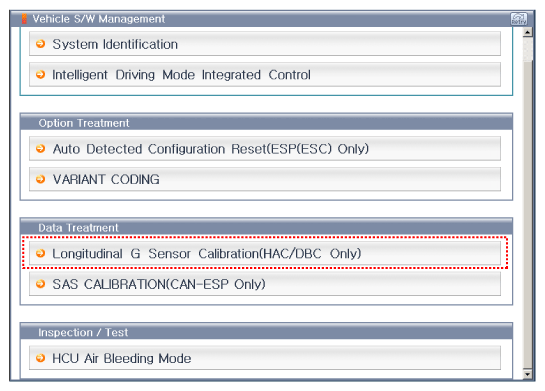

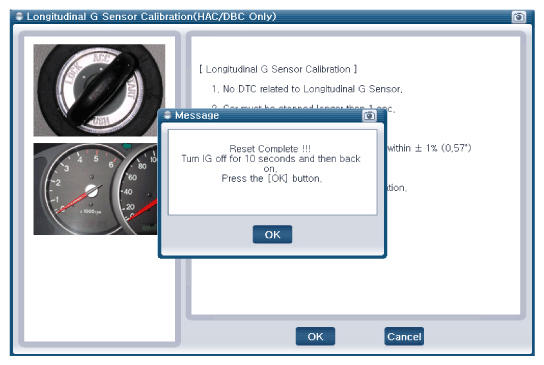

[Longitudinal G Sensor Calibration]

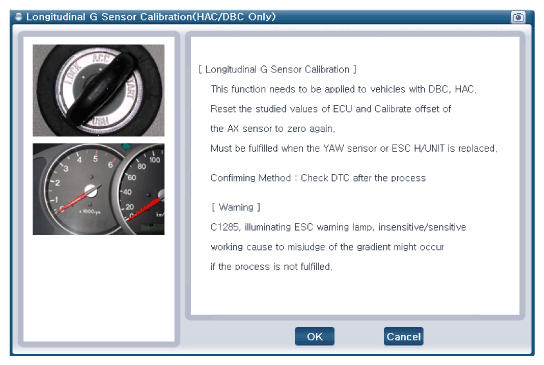

Fig 7: Screen Display - Variant Coding (6 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

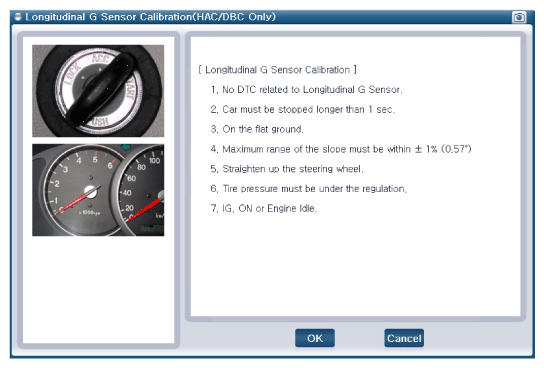

Fig 8: Screen Display - Variant Coding (7 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Screen Display - Variant Coding (8 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Screen Display - Variant Coding (9 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

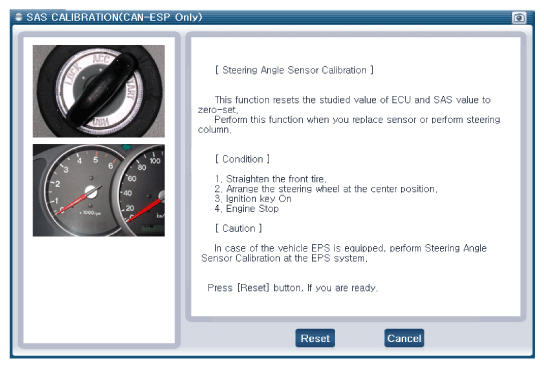

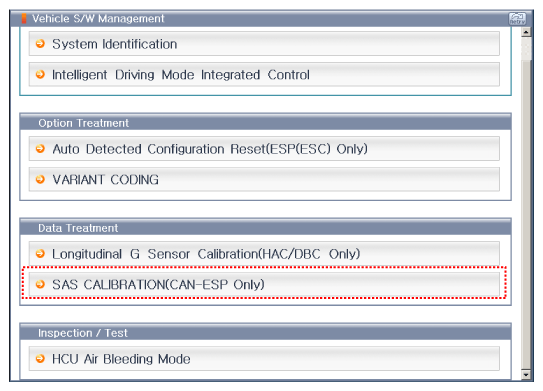

[SAS CALIBRATION]

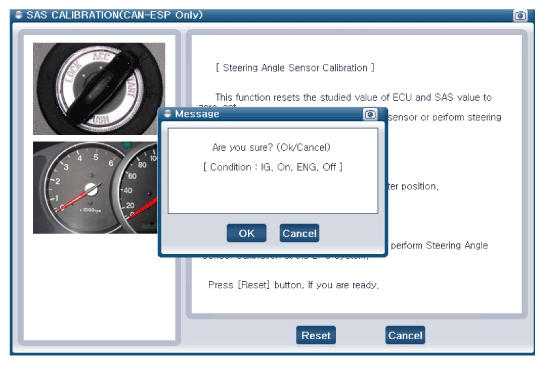

Fig 11: Screen Display - Variant Coding (10 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Screen Display - Variant Coding (11 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 13: Screen Display - Variant Coding (12 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA

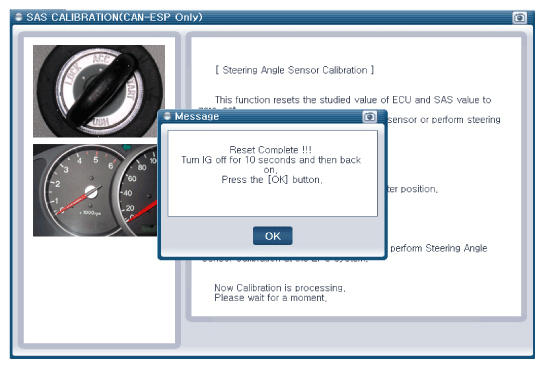

Fig 14: Screen Display - Variant Coding (13 Of 13)
Courtesy of HYUNDAI MOTOR AMERICA
