Calibration Procedure

Perform wheel alignment and stand the steering wheel in a line within ±5° error.

Fig 1: Performing Wheel Alignment

Courtesy of HYUNDAI MOTOR AMERICA

1. Connect the GDS. (CAN line or OBD connector)
2. Turn ignition switch ON.
3. Press calibration button of the Steering Wheel Angle Sensor.
4. SAS calibration procedure is performed.

   (Calibration records, DTC codes erasure)

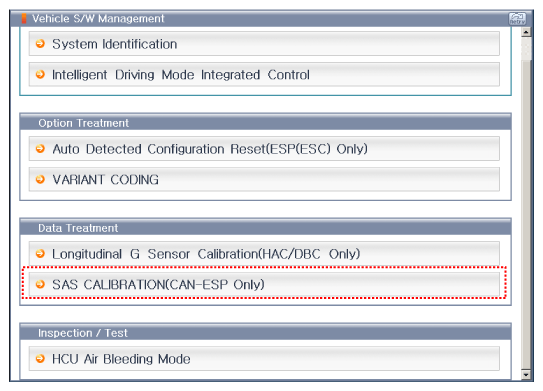

   Fig 2: Screen Display - GDS

   Courtesy of HYUNDAI MOTOR AMERICA

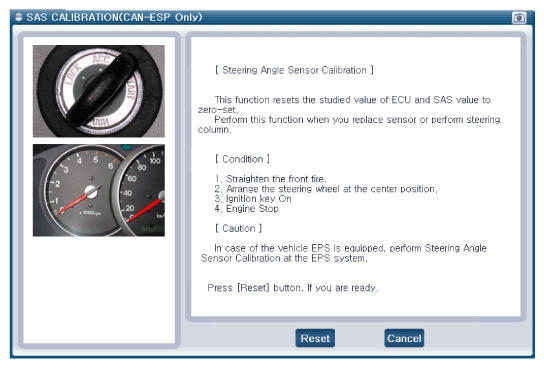

   Fig 3: Screen Display - SAS Calibration (1 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA

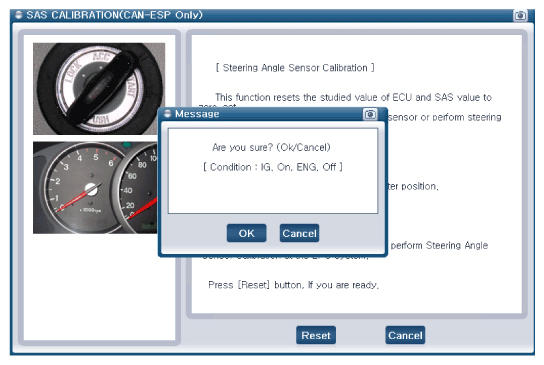

   Fig 4: Screen Display - SAS Calibration (2 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA

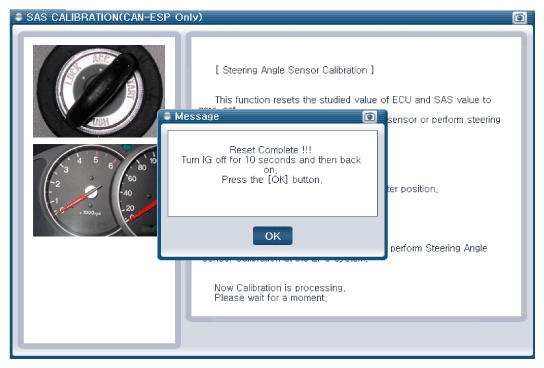

   Fig 5: Screen Display - SAS Calibration (3 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA
