Engine Control System - 2.4L (Except HEV)
›
Engine Control System
›
Components and Components Location
›
Components Location
Components Location

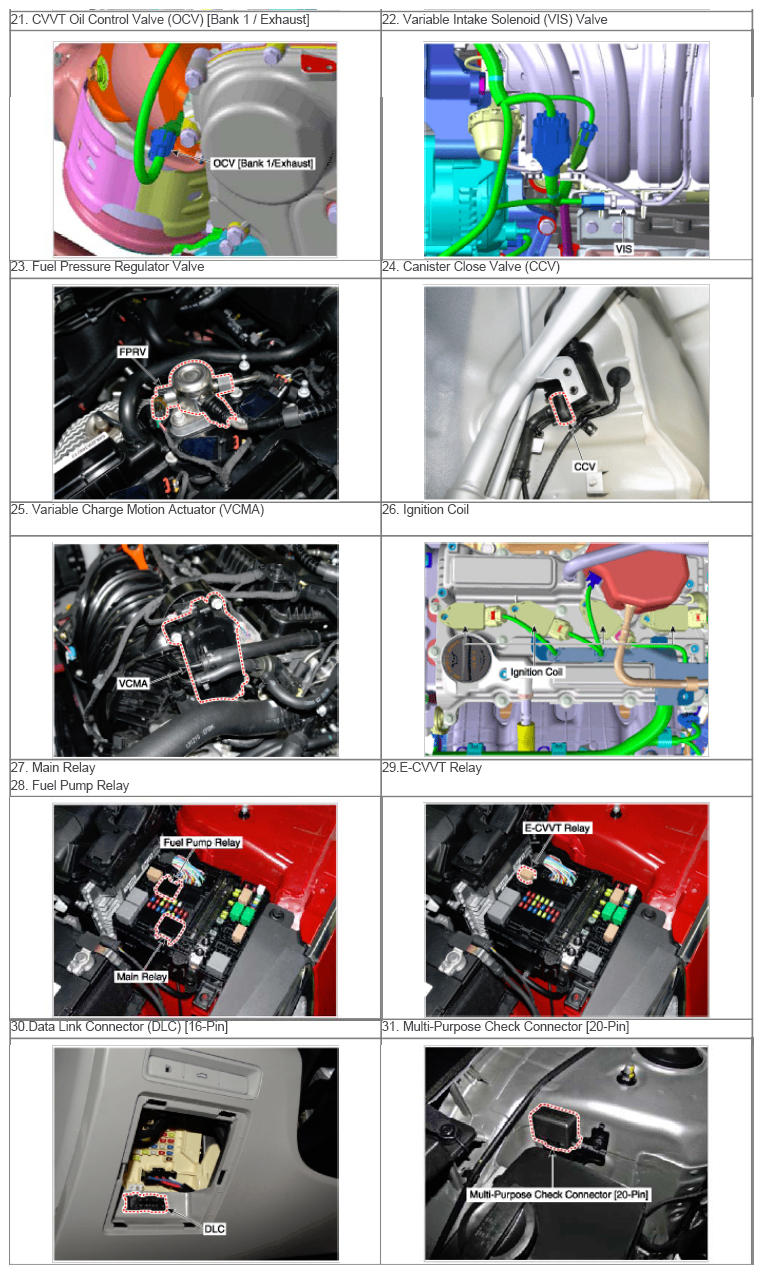

Fig 1: Engine Control/Fuel System Related Components Locations (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

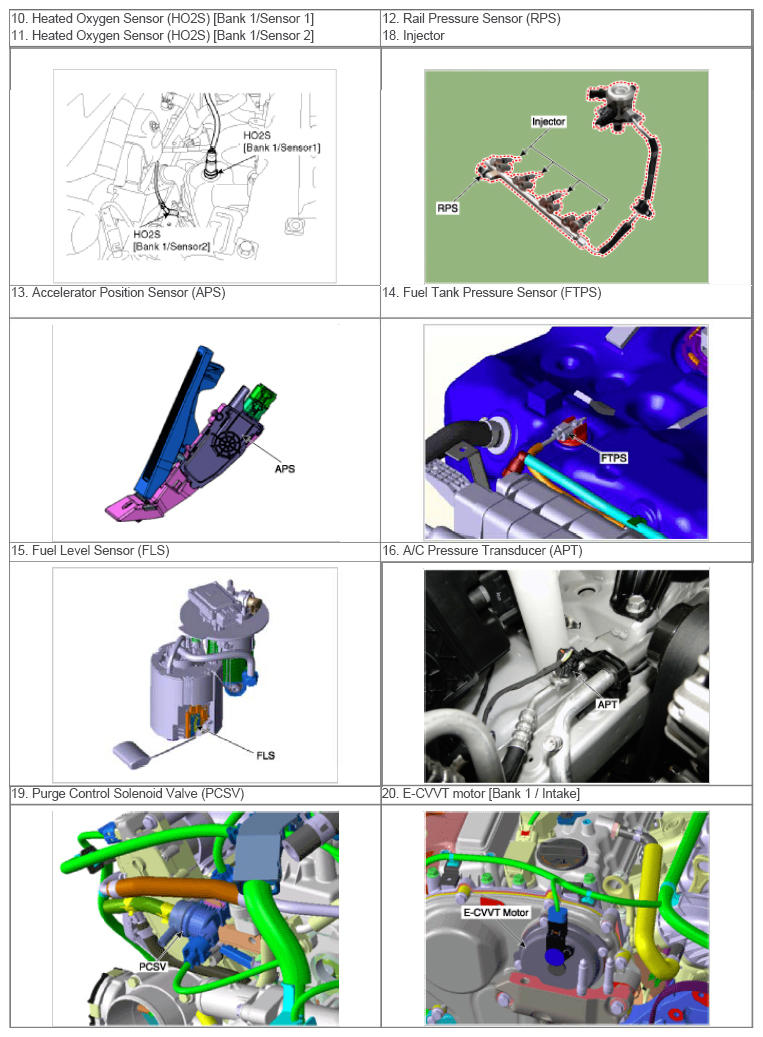

Fig 2: Engine Control/Fuel System Related Components Locations (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

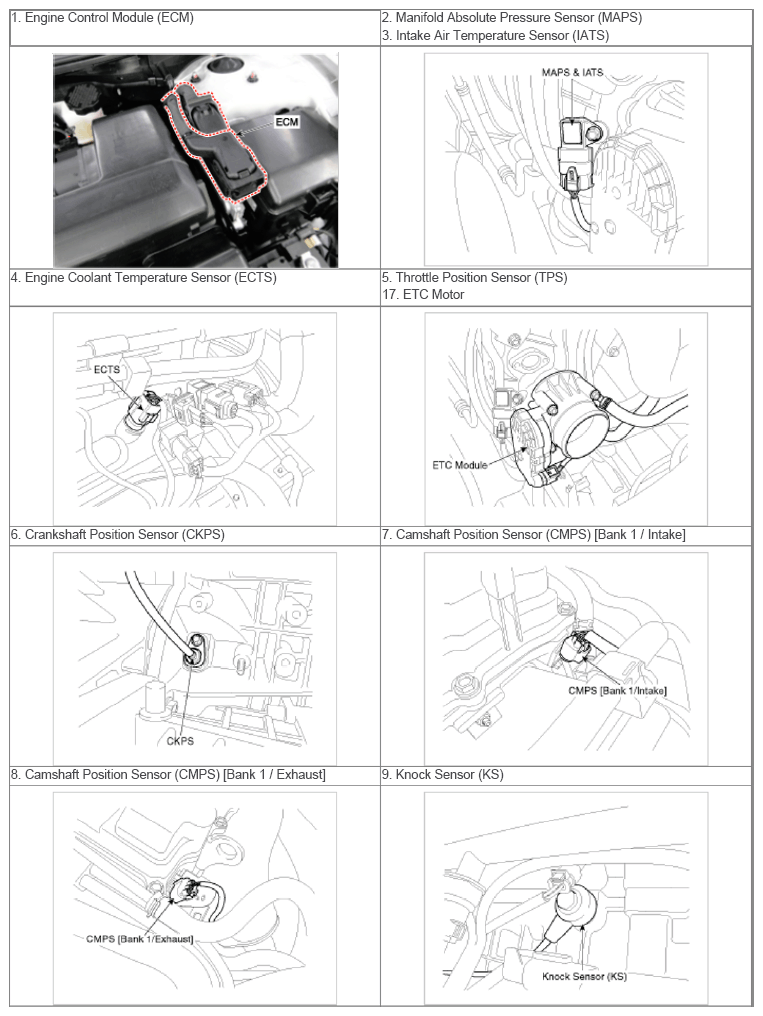

Fig 3: Engine Control/Fuel System Related Components Locations (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

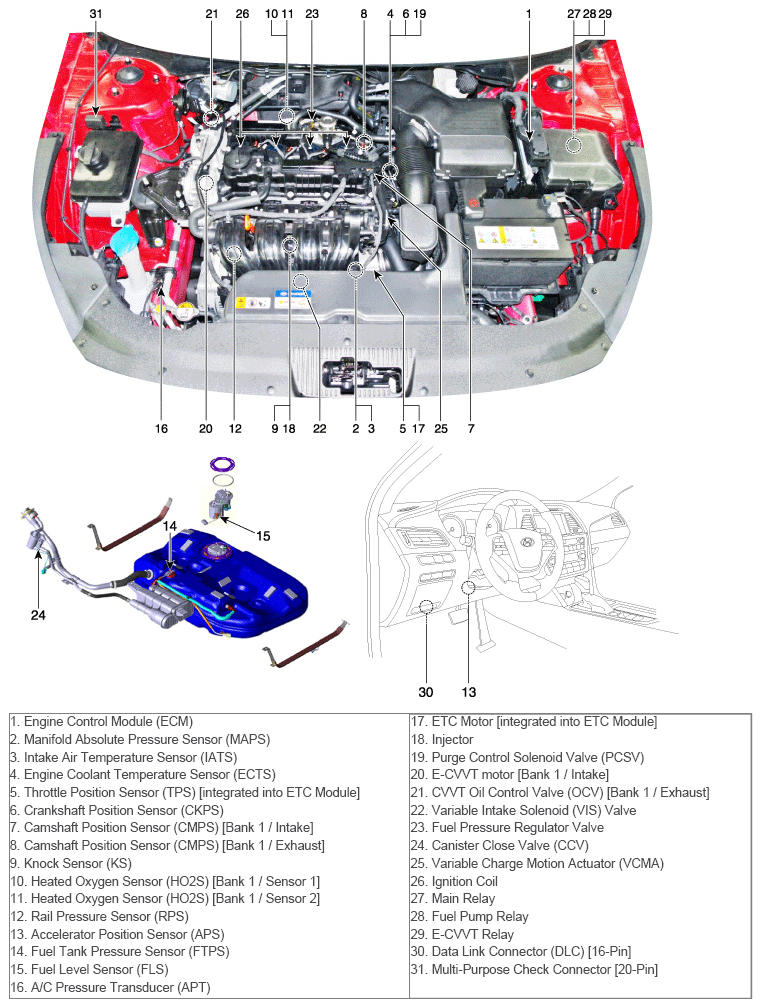

Fig 4: Engine Control/Fuel System Related Components Locations (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
