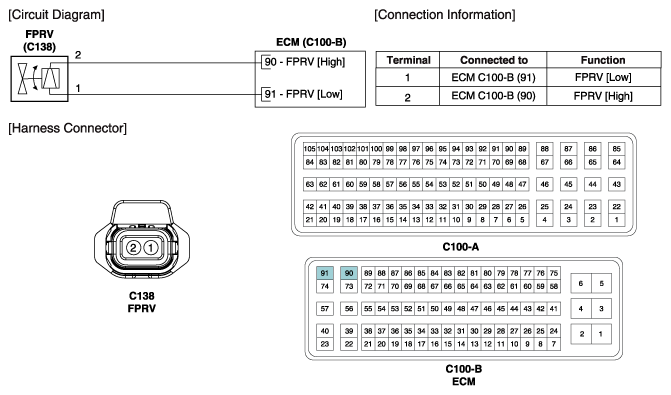

Home › Hyundai › 2016 › Sonata Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L (Except HEV) › Fuel Pressure Control Valve › Schematic Diagrams › Circuit Diagram
