Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

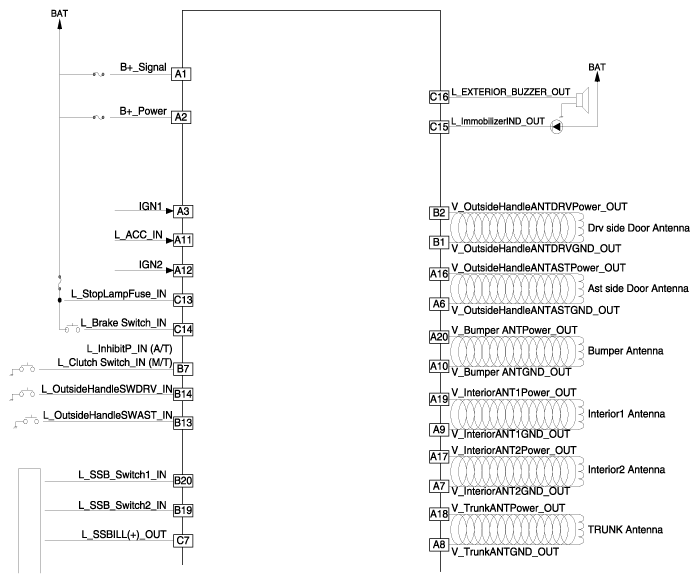

Fig 1: Smart Key Unit Circuit (1 Of 2)
G12062551Courtesy of HYUNDAI MOTOR AMERICA

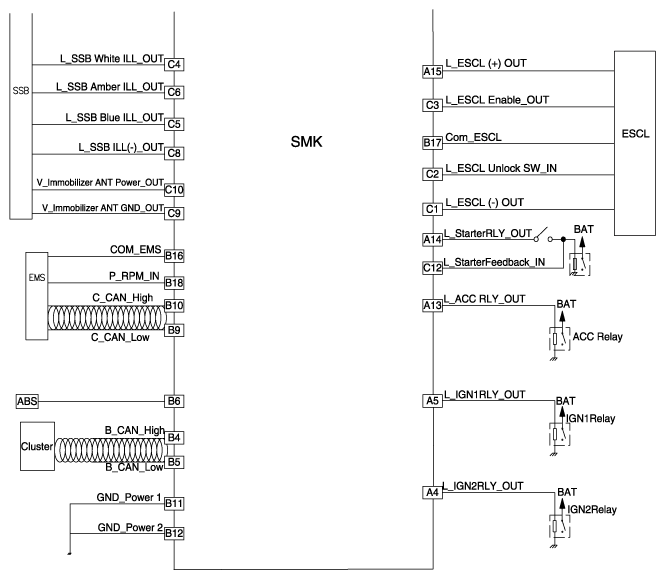

Fig 2: Smart Key Unit Circuit (2 Of 2)
G12062552Courtesy of HYUNDAI MOTOR AMERICA
