Component Location

WARNING: This page is about a different variant/trim than selected.

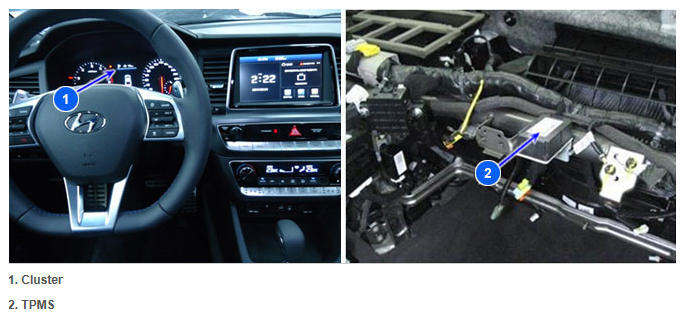

Fig 1: Components

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Cluster: "INSTRUMENT CLUSTER"
TPMS (Tire Pressure Monitoring System module): "TIRE PRESSURE MONITORING MODULE"
