Automatic Transaxle Control System - 2.4L (Except HEV)
›
Automatic Transaxle Control System
›
Components and Components Location
›
Components Location (1)
Components Location (1)

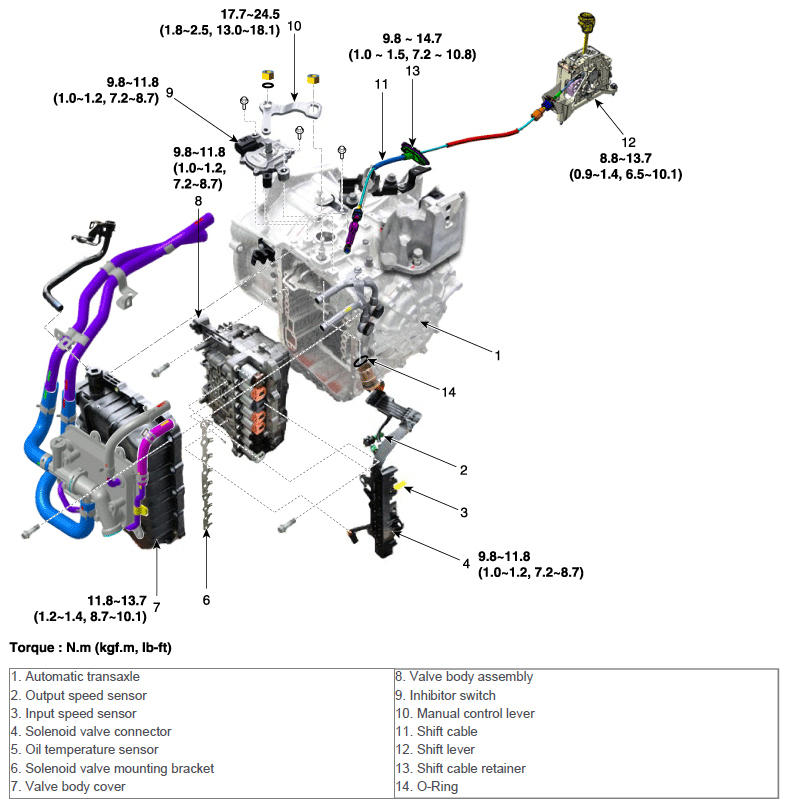

Fig 1: Automatic Transaxle System Related Components With Torque Specifications (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
