Automatic Transaxle Control System
›
Components and Components Location
›
Components Location (2)
Components Location (2)

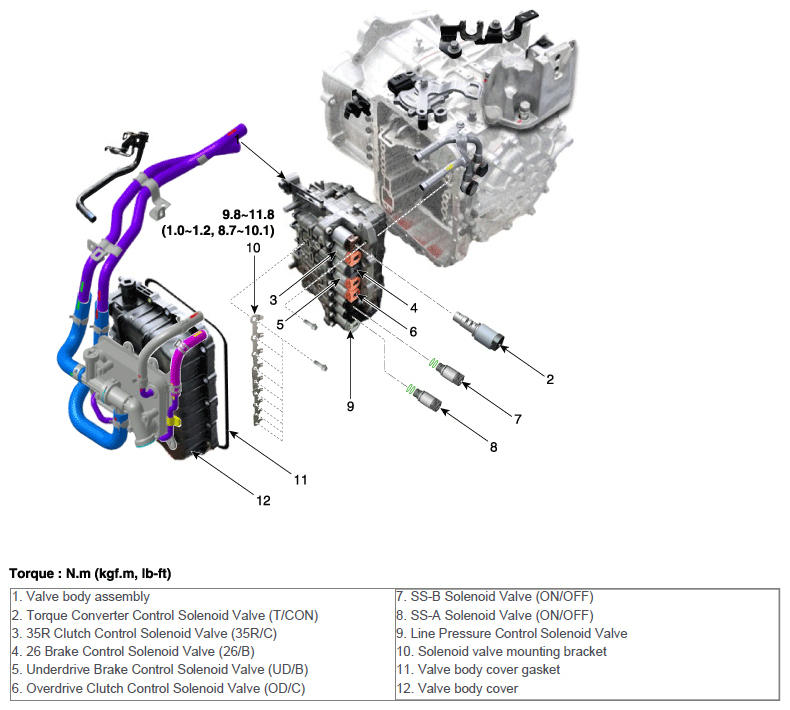

Fig 1: Automatic Transaxle System Related Components With Torque Specifications (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
