Automatic Transaxle Control System - 2.4L (Except HEV)
›
Inhibitor Switch
›
Repair Procedures
›
Inspection
›
Inspection Flow
Inspection Flow

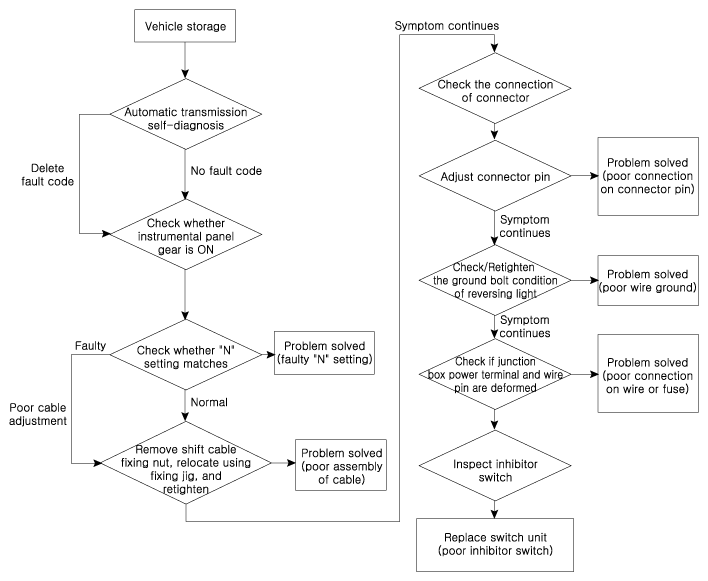

Fig 1: Inhibitor Switch Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
