Signal Waveform

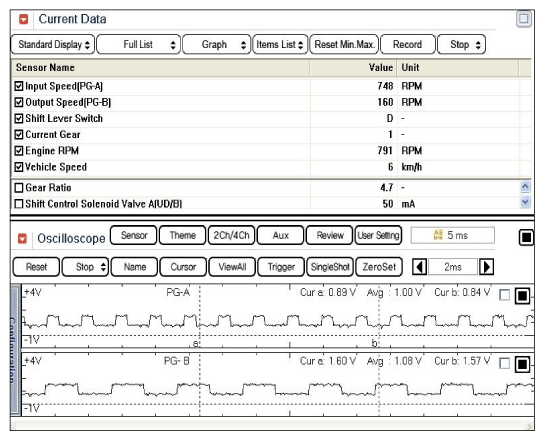

Fig 1: Screen Display - Input/Output Speed Sensor At Low Speed
G10571176Courtesy of HYUNDAI MOTOR AMERICA

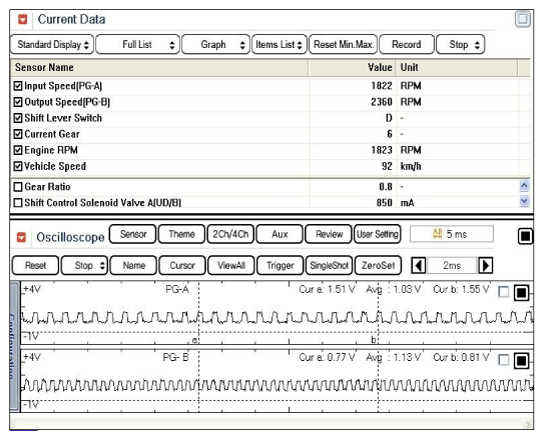

Fig 2: Screen Display - Input/Output Speed Sensor At High Speed
G10571177Courtesy of HYUNDAI MOTOR AMERICA
