Home › Hyundai › 2016 › Sonata Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L (Except HEV) › Shift Cable › Components and Components Location › Components

Components and Components Location: Components

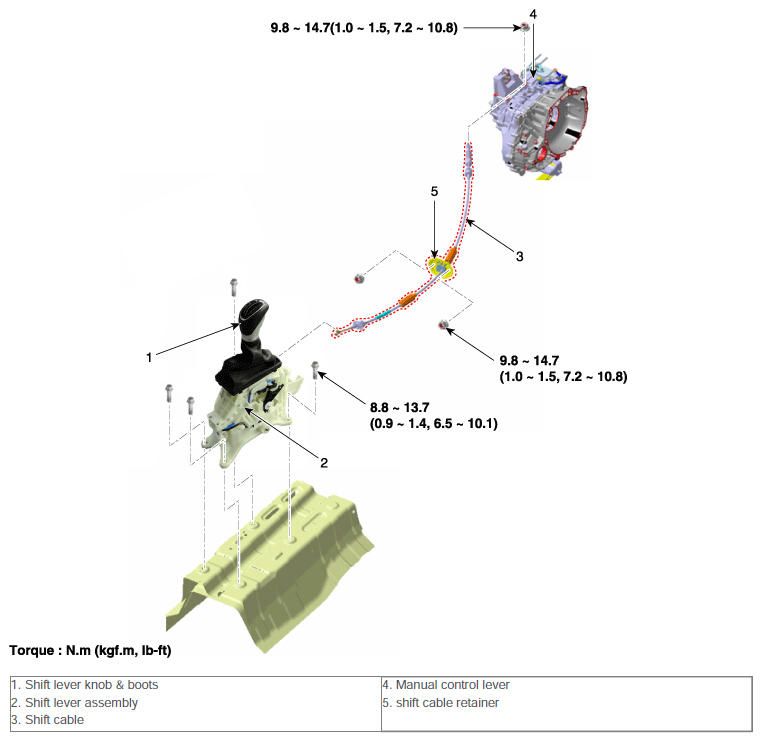

Fig 1: Shift Cable Related Components With Torque Specifications
G10571257Courtesy of HYUNDAI MOTOR AMERICA
