Shift Lever
›
Components and Components Location
›
Components Location
Components Location

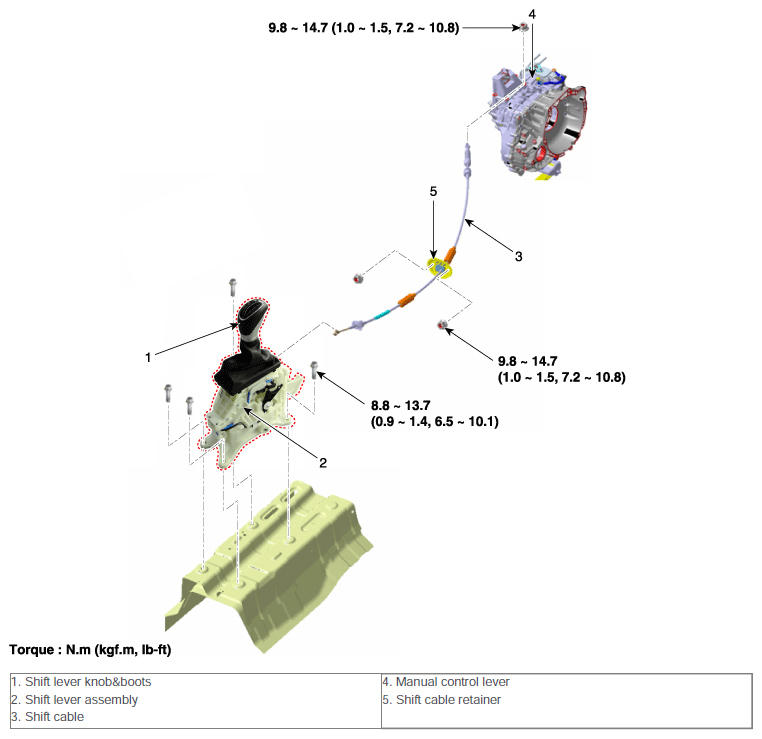

Fig 1: Identifying Shift Lever Related Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
