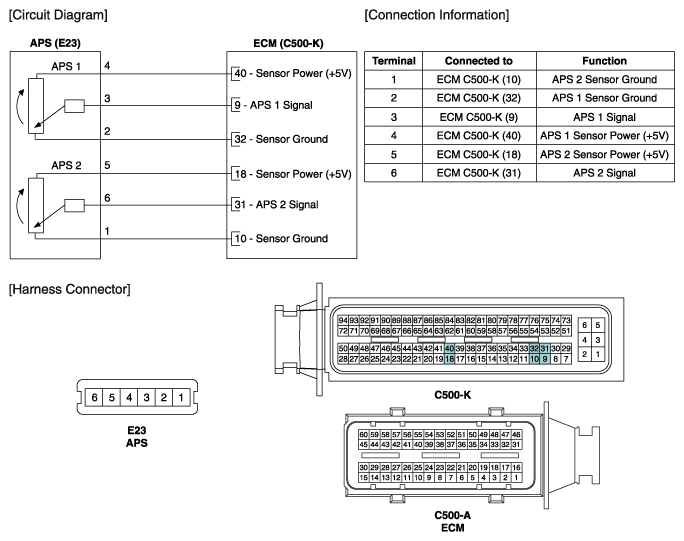

Home › Hyundai › 2016 › Sonata Eco › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L (Except HEV) › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
