Components Location

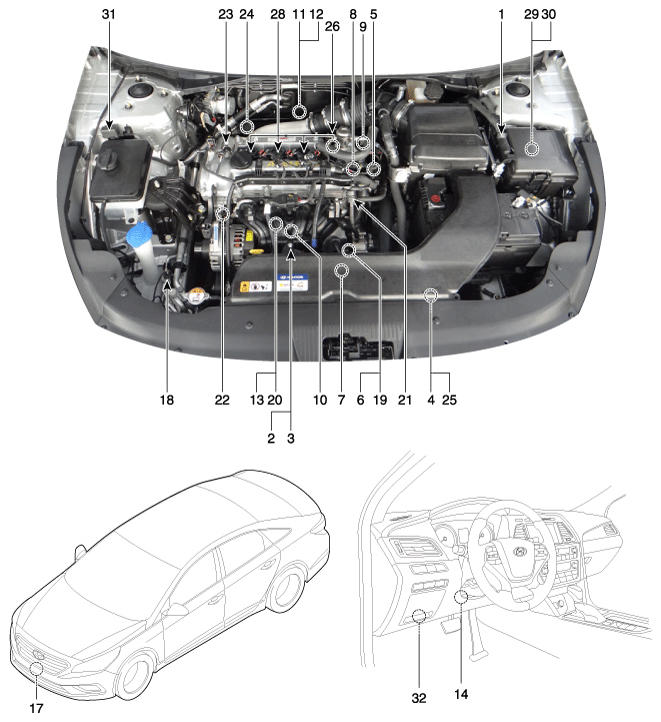

Fig 1: Engine Control System Related Components (1 Of 5)
G10566660Courtesy of HYUNDAI MOTOR AMERICA

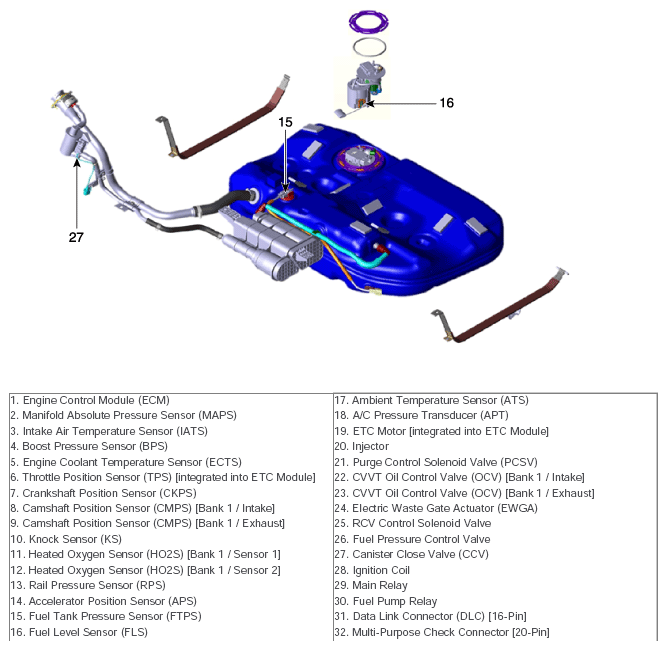

Fig 2: Engine Control System Related Components (2 Of 5)
G10566661Courtesy of HYUNDAI MOTOR AMERICA

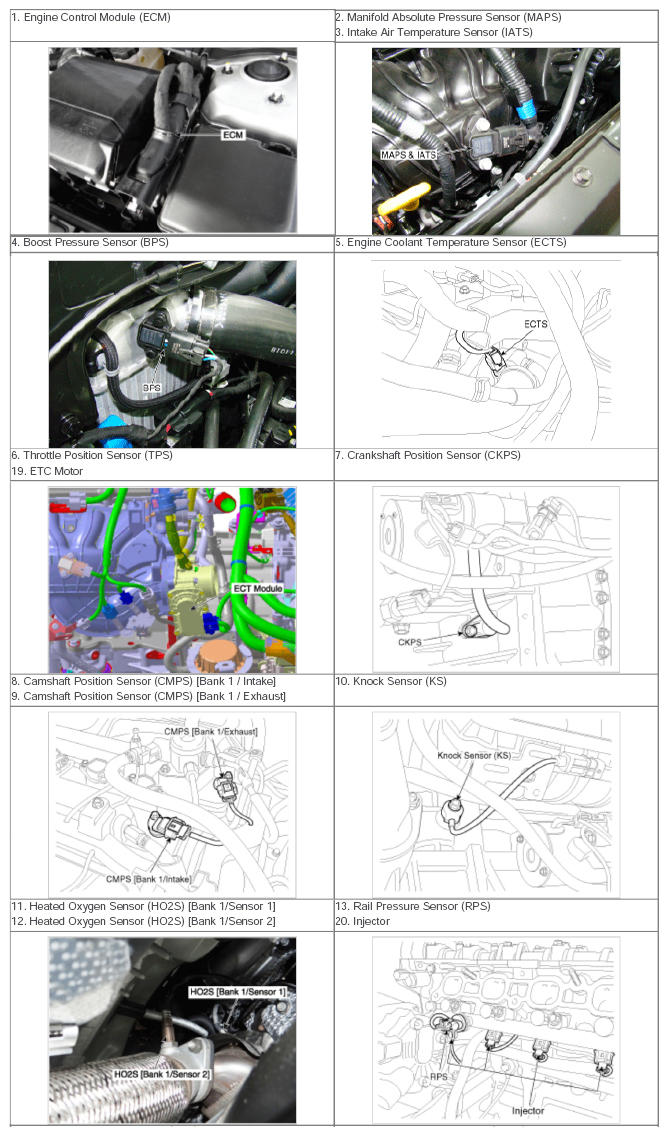

Fig 3: Engine Control System Related Components (3 Of 5)
G10566662Courtesy of HYUNDAI MOTOR AMERICA

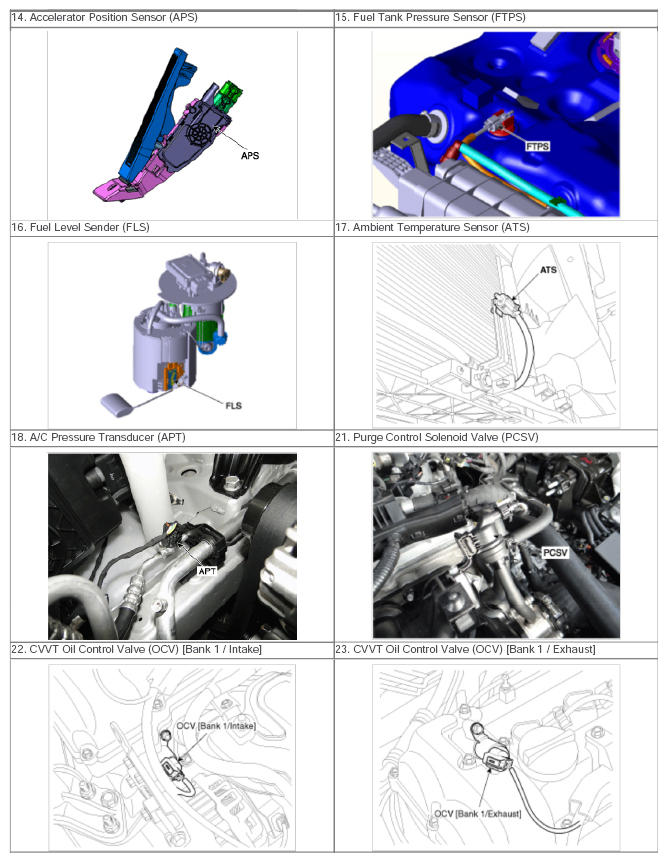

Fig 4: Engine Control System Related Components (4 Of 5)
G10566663Courtesy of HYUNDAI MOTOR AMERICA

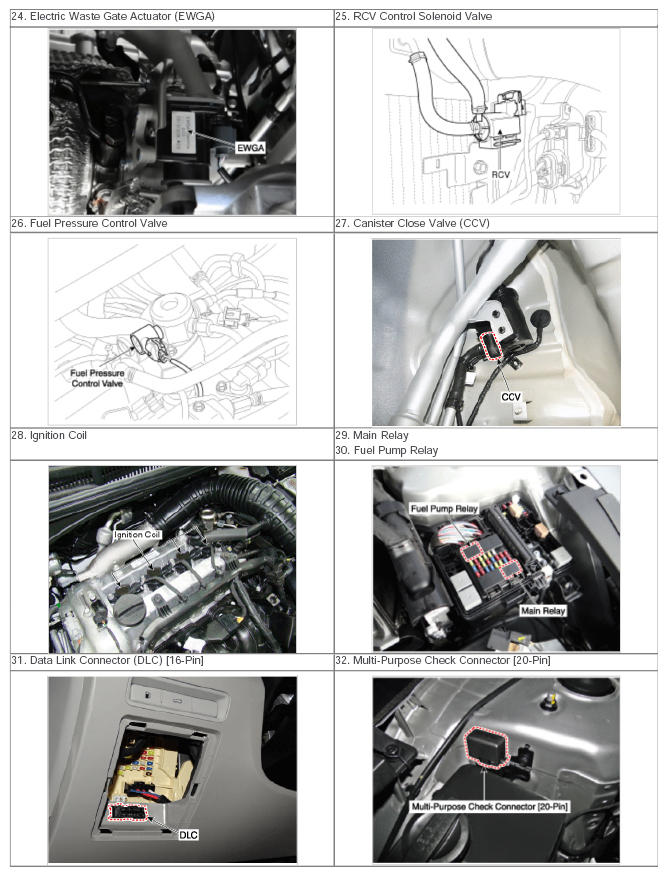

Fig 5: Engine Control System Related Components (5 Of 5)
G10566664Courtesy of HYUNDAI MOTOR AMERICA
