[Transaxle Installation component]

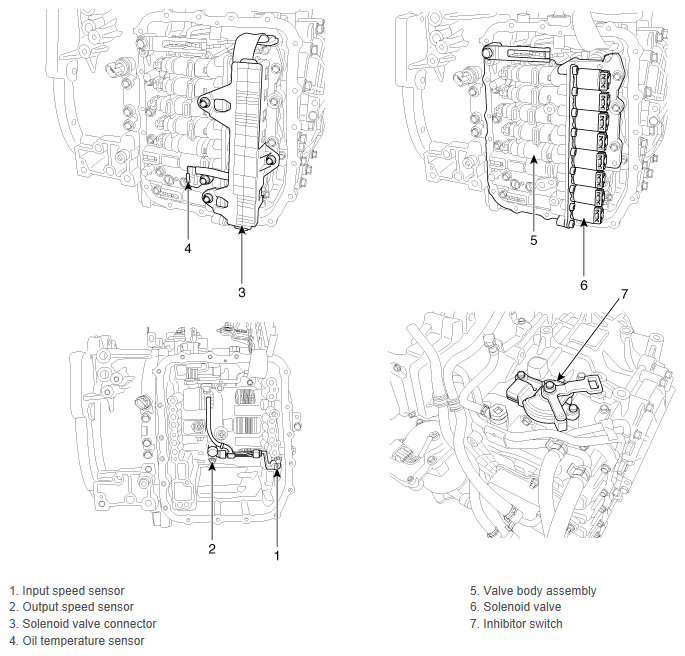

Fig 1: Automatic Transaxle Control System Components (Transaxle Installation Component)
G12061048Courtesy of HYUNDAI MOTOR AMERICA
