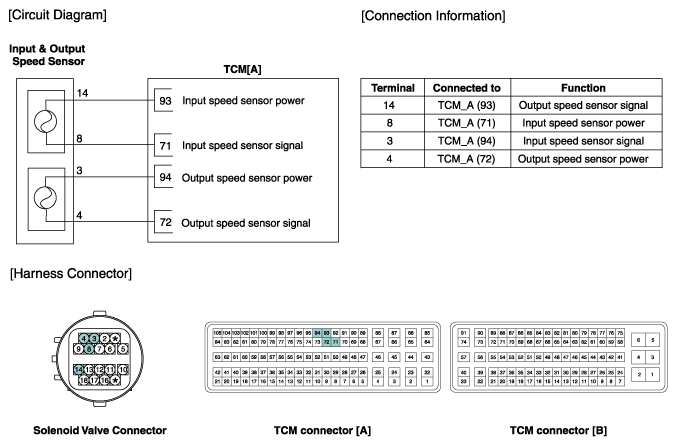

Home › Hyundai › 2016 › Sonata Hybrid Limited › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (HEV) › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
