Components And Components Location: Components

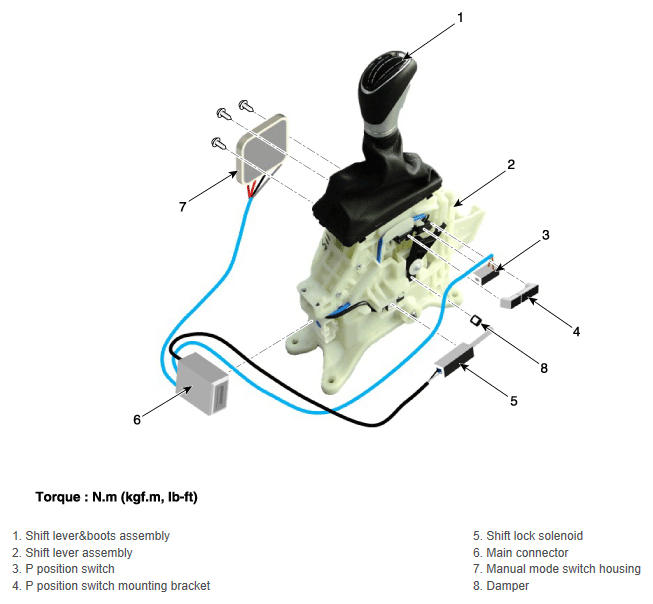

Fig 1: Shift Lever Components With Torque Specification (2 Of 2)
G12061217Courtesy of HYUNDAI MOTOR AMERICA
