Home › Hyundai › 2016 › Sonata Plug-In Hybrid › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System (PHEV) › Intake Manifold › Components and Components Location › Components

Components and Components Location: Components

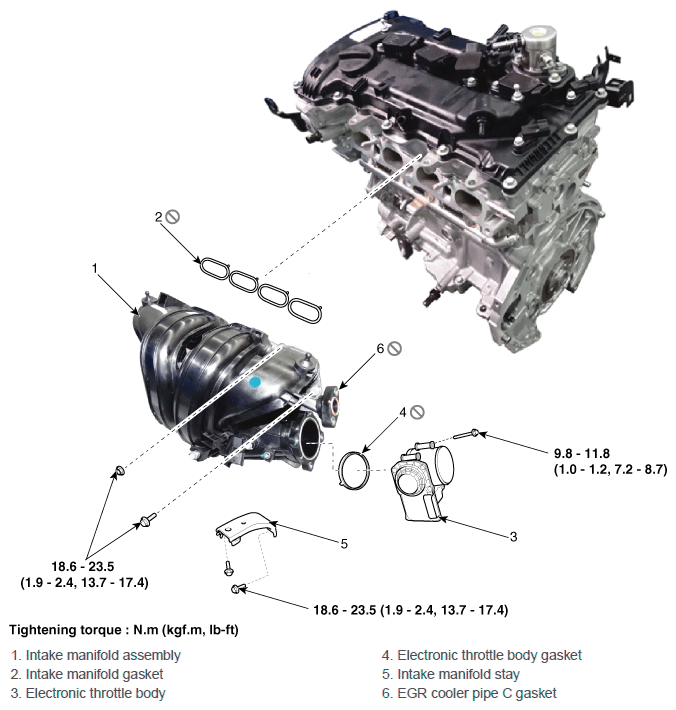

Fig 1: Intake Manifold Components With Torque Specification
G11630702Courtesy of HYUNDAI MOTOR AMERICA
