Home › Hyundai › 2016 › Sonata Plug-In Hybrid › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram

Circuit Diagram

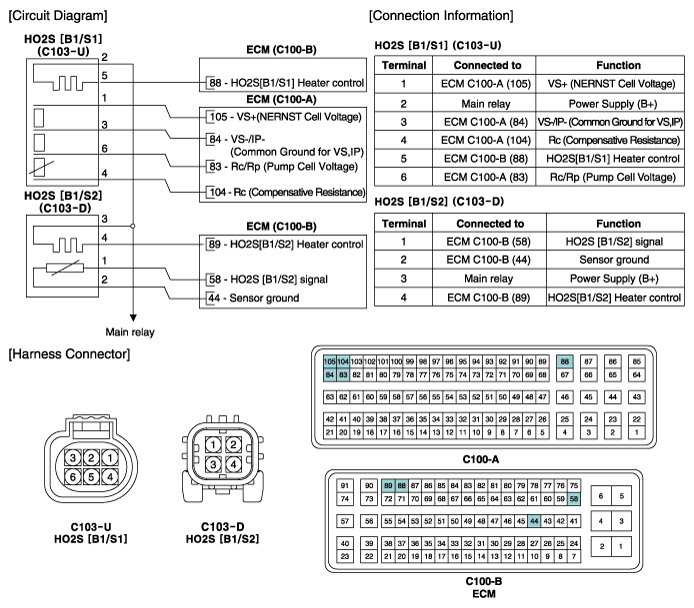

Fig 1: Heated Oxygen Sensor Schematic Diagrams And Connector End View
G11631024Courtesy of HYUNDAI MOTOR AMERICA
