Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Wear gloves to protect hands from injury.

Information

When removing and installing the tail gate, an assistant is necessary.

Remove the tail gate trim.
(Refer to Tail Gate - "TAIL GATE TRIM ")
Remove the tail gate upper trim.
(Refer to Tail Gate - "TAIL GATE TRIM ")
Remove the tail gate side trim.
(Refer to Tail Gate - "TAIL GATE TRIM ")
Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

Fig 1: Disconnecting Washer Nozzle Hose And High Mounted Stop Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tail gate lifter (B).

Fig 2: Lifting Socket Clips On Both Ends Of Tail Gate Lifter
Courtesy of HYUNDAI MOTOR AMERICA

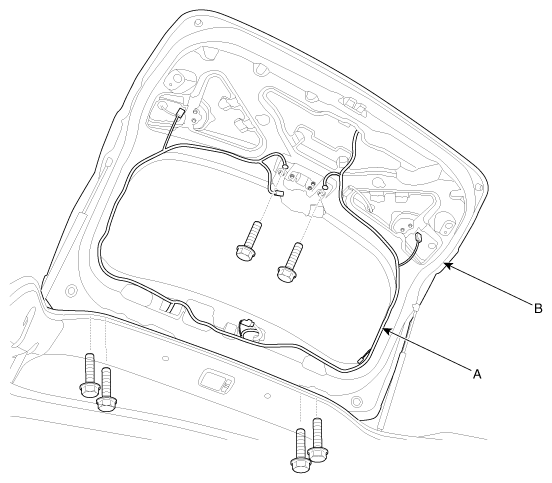

Disconnect the connectors and tail gate wiring harness (A).
After loosening the mounting bolts, then remove the tail gate assembly (B).
Tightening torque:

21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

Fig 3: Disconnecting Connectors And Tail Gate Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Make sure the tail gate locks/unlocks and opens/closes properly.
- Adjust the tail gate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
