[Transaxle Installation component]

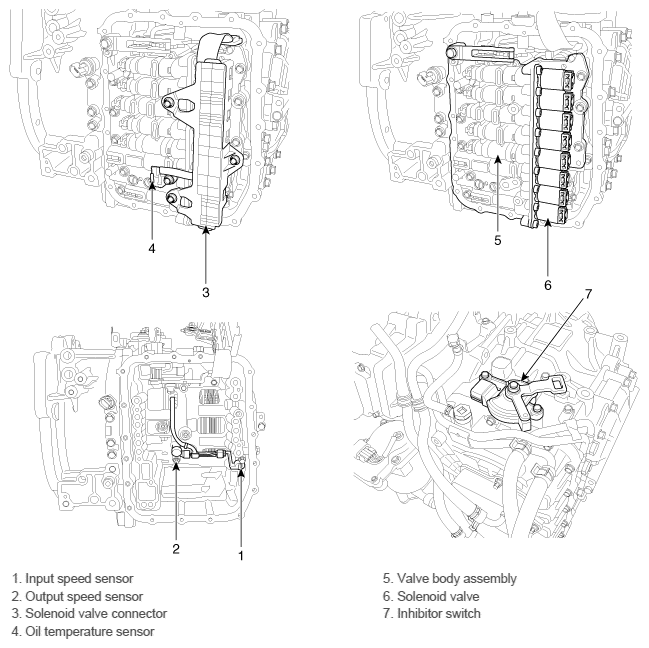

Fig 1: Automatic Transaxle Control System - Transaxle Installation Component
G11631270Courtesy of HYUNDAI MOTOR AMERICA
