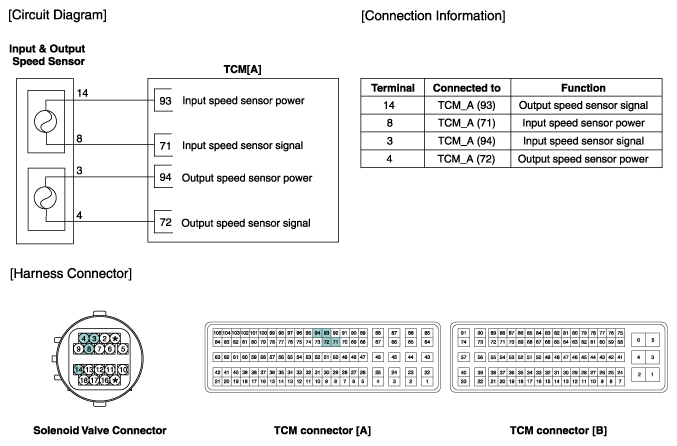

Home › Hyundai › 2016 › Sonata Plug-In Hybrid › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (PHEV) › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
