Signal Waveform

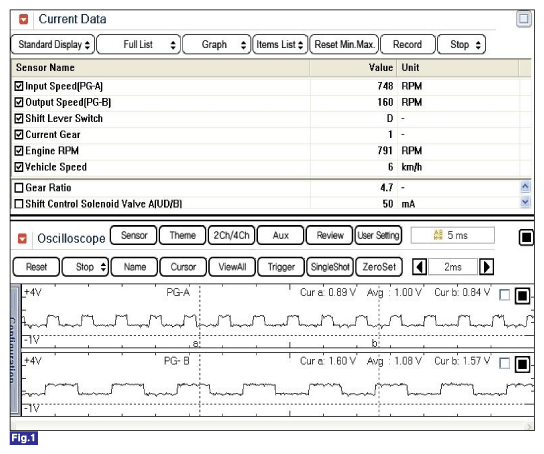

Fig 1: Input Speed Sensor Troubleshooting Signal Waveform
G11631292Courtesy of HYUNDAI MOTOR AMERICA

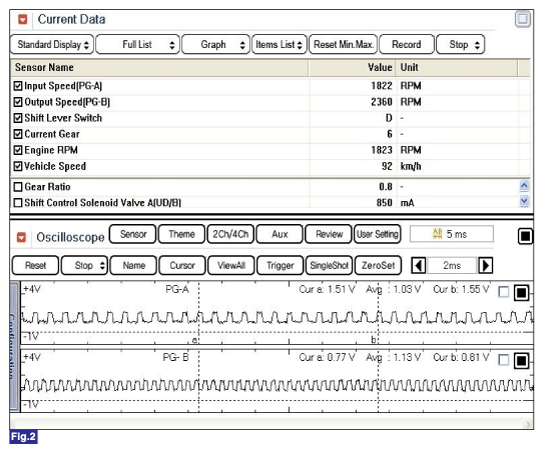

Fig 2: Input/Output Speed Sensor At High Speed Signal Waveform
G11631293Courtesy of HYUNDAI MOTOR AMERICA
