Components and Components Location: Components

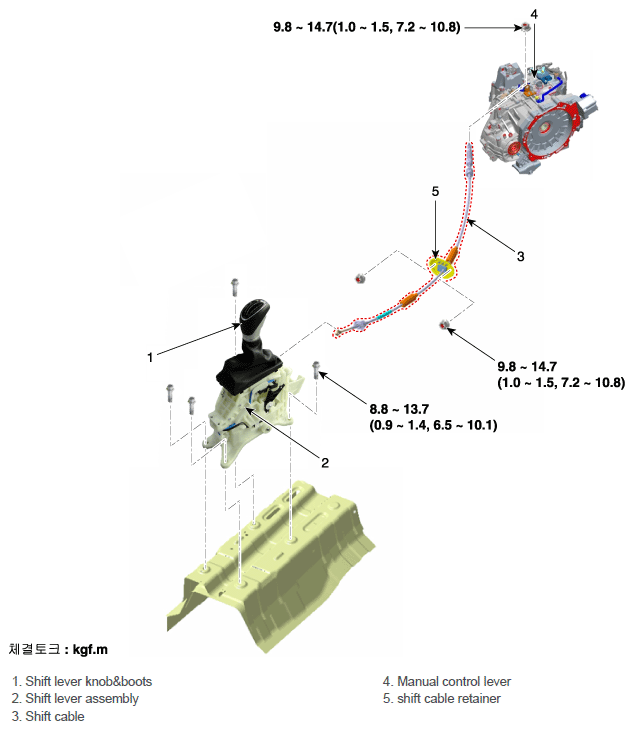

Fig 1: Shift Cable Related Components Location With Torque Specifications
G11631381Courtesy of HYUNDAI MOTOR AMERICA
