Front Wheel Transfer Assembly
›
Components and Components Location
›
Components Location
Components Location

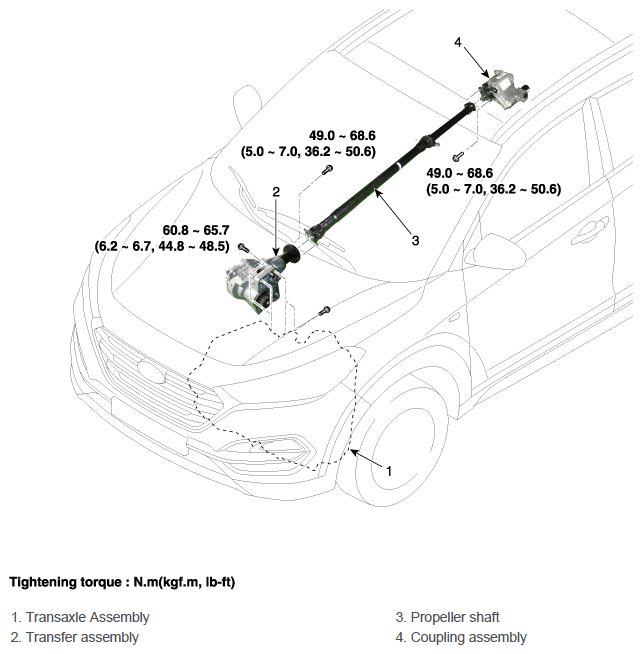

Fig 1: Front Wheel Transfer Assembly Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
