Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover.

    (Proceed to Body - "CRASH PAD UNDER COVER ")

  3. Disconnect the body control module connectors (A).

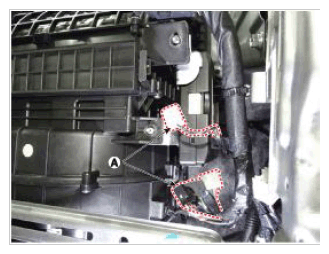

    Fig 1: Disconnecting Body Control Module Connectors
    G11669851Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the body control module (A) after loosening the mounting nuts and screw.

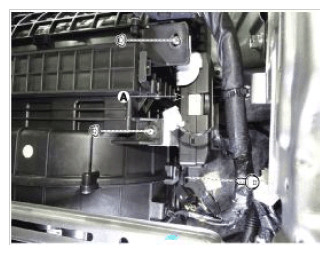

Fig 2: Removing Body Control Module Mounting Nuts And Screw
G11669852Courtesy of HYUNDAI MOTOR AMERICA
