Repair Procedures: Inspection

1. Check for refusal between terminals in each switch position (LH).

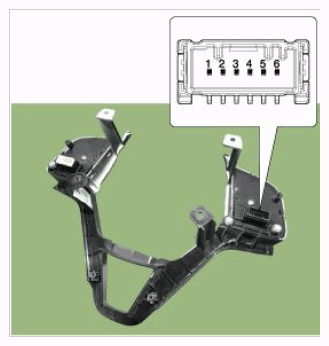

   Fig 1: Checking Refusal Between Switch Position (LH) Terminals

   Courtesy of HYUNDAI MOTOR AMERICA

   [LH: Audio + Hands Free]

   Switch	Connector Terminal	Refusal (±5%)
   SEEK Up	2-5	430 Ω
   SEEK Down		1.11 kΩ
   MODE		2.11 kΩ
   MUTE		3.11 kΩ
   Volume (+)		4.61 kΩ
   Volume (-)		6.81 kΩ
   Voice		10.71 kΩ
   SEND		18.91 kΩ
   END		40.91 kΩ

2. Check for Refusal between terminals in each switch position (RH).

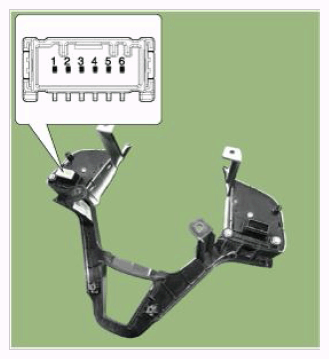

Fig 2: Checking Refusal Between Switch Position (RH) Terminals

Courtesy of HYUNDAI MOTOR AMERICA

[RH: Trip + Cruise]
