Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear floor carpet.

    (Proceed to Body - "FLOOR CARPET ")

  3. Remove the interior 2 antenna (B) after loosening the mounting nuts and disconnecting the connector (A).

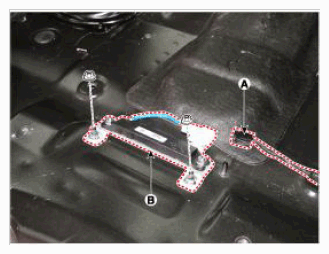

    Fig 1: Removing Interior 2 Antenna
    G11669801Courtesy of HYUNDAI MOTOR AMERICA
